Description
Brand - FAG
Item Number - 23156-BE-XL-K-W209B-C4 FAG
Category - Spherical Roller Bearing
Also known as - 0597103220040 23156-BE-K-W209B-C4
EAN - 4012802325249
Inner (d) MM - 280
Outer (D) MM - 460
Width (B) MM - 146
Inner (d) Inch -
Outer (D) Inch -
Width (B) Inch -
Weight (kg) - 99.5
Bore - K - 1:12 Tapered Bore (Standard for Most Types)
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Hardened Inner Ring
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution

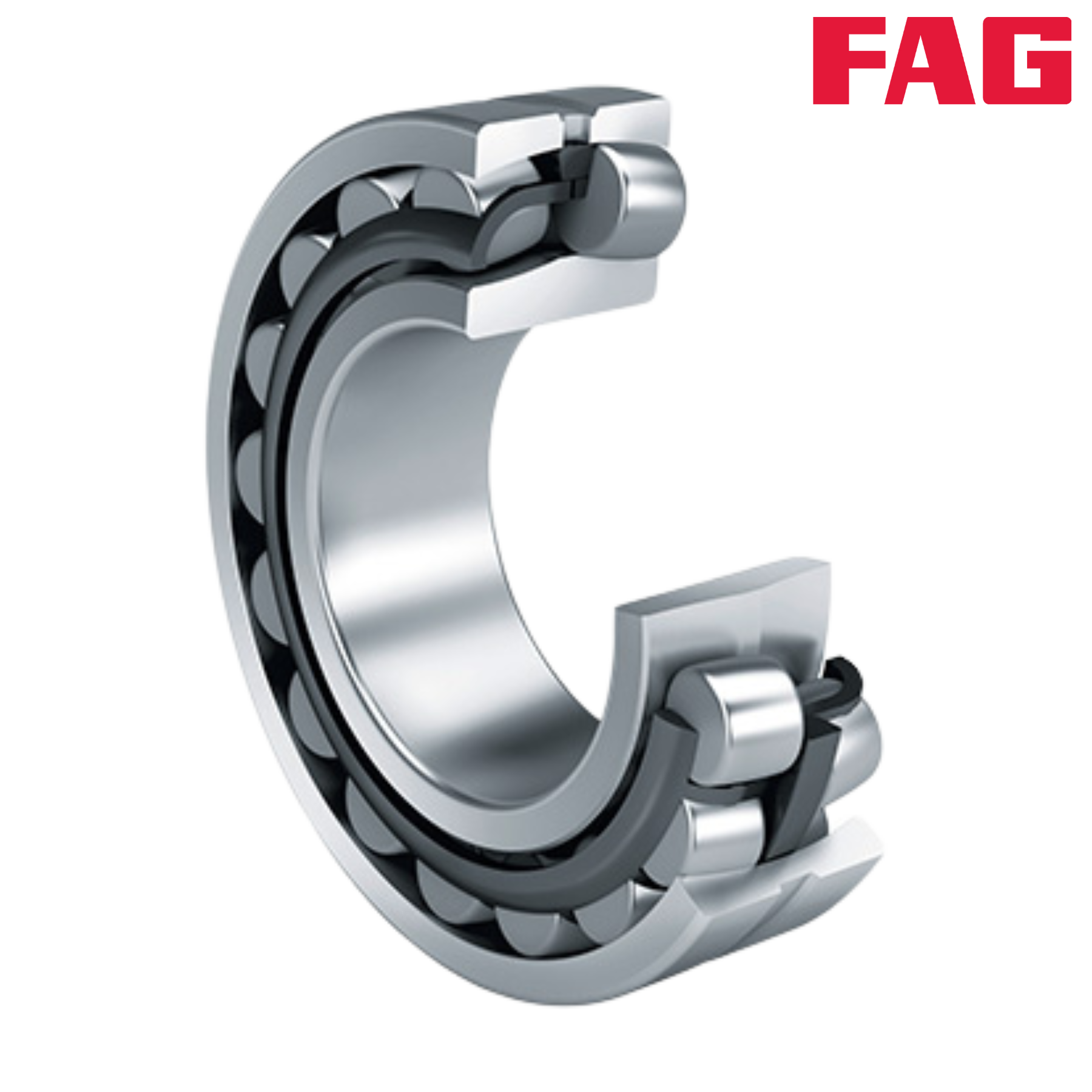

** Image is for representation purposes only
