Description
Brand - FAG
Item Number - 23156-BE-XL-H40 FAG
Category - Spherical Roller Bearing
Also known as - 0633856510000 23156-BE-H40
EAN - 4012802397147
Inner (d) MM - 280
Outer (D) MM - 460
Width (B) MM - 146
Weight (kg) - 96.4
Bore - C - Cylindrical Bore
Lubrication Enhancement - W - No Lubrication Groove or Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 4200000
Radial Dynamic Load Rating Cr (N) - 2750000

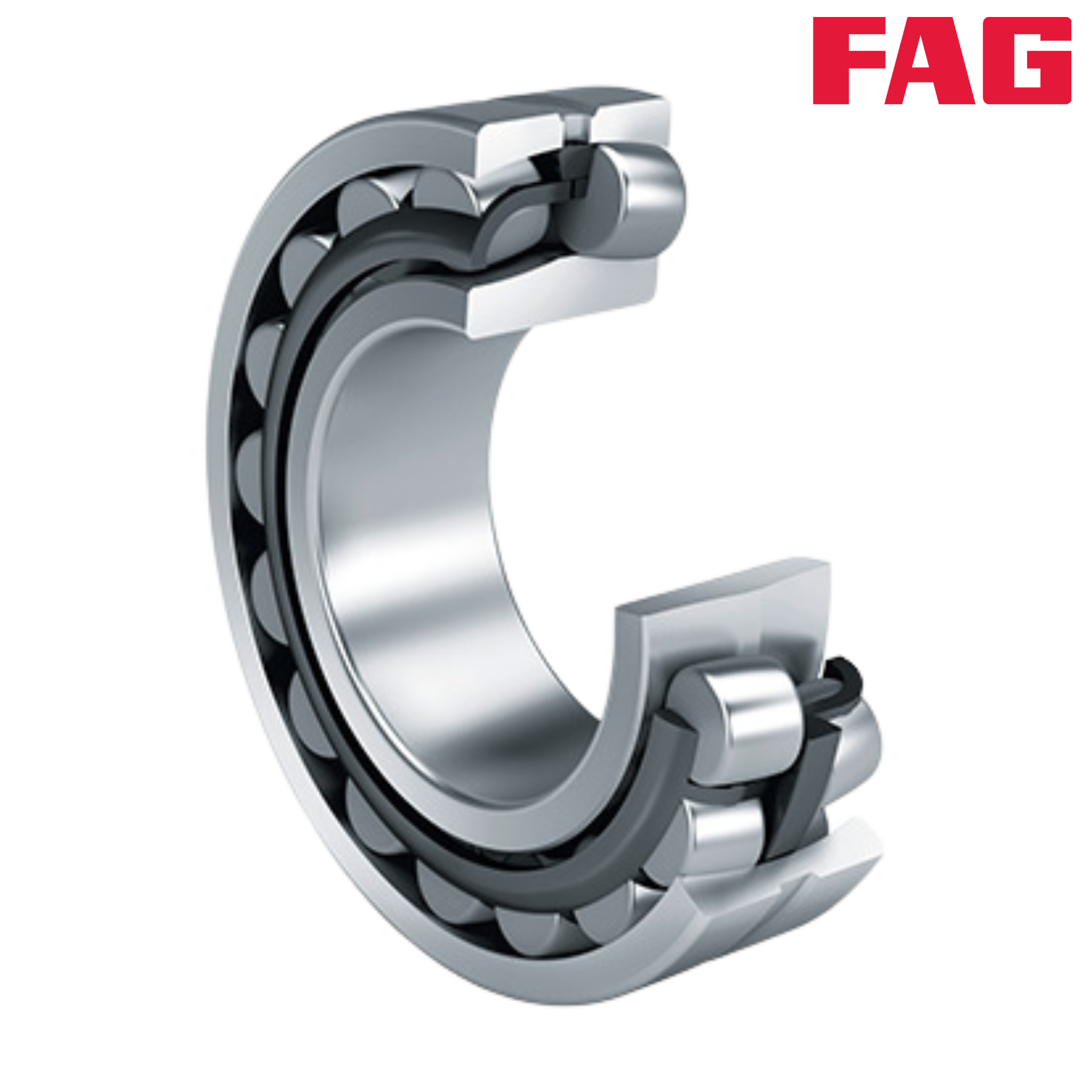

** Image is for representation purposes only
