Description
Brand - FAG
Item Number - 23156-BE-XL-2RSR FAG
Category - Sealed Spherical Roller Bearing
Weight (m) kg - 96.3
Inner Diameter (d) mm - 280
Outer Diameter (D) mm - 460
Width (B) mm - 146
Minimum Chamfer Dimension (r) mm - 5
Outer Ring Bore Diameter (D1) mm - 431
Inner Ring Raceway Diameter (d2) mm - 315
Lubrication Hole Diameter (ds) mm - 9.5
Lubrication Groove Width (ns) mm - 17.7

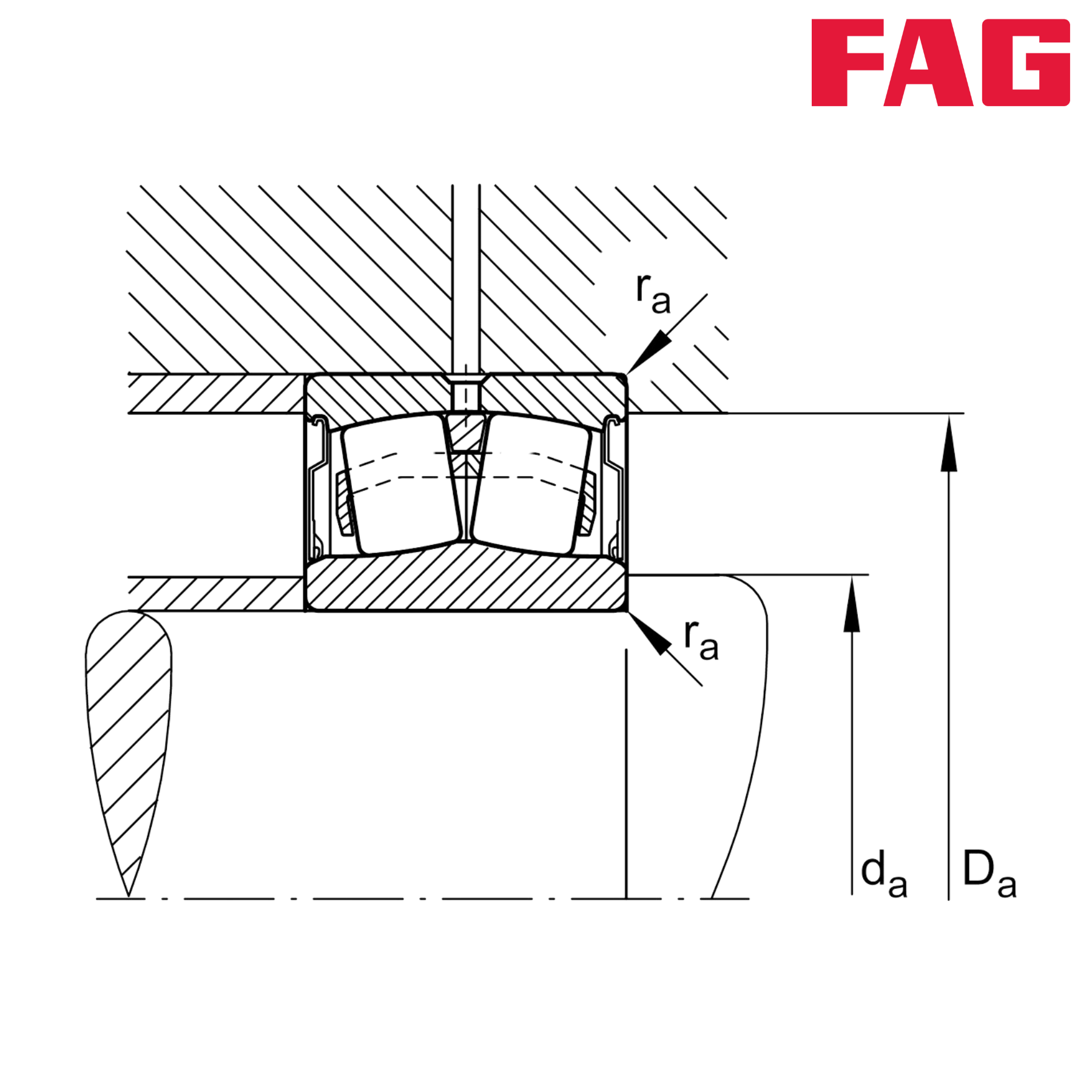

Minimum Abutment Diameter of Shaft Shoulder (da) mm - 300
Maximum Housing Connection Diameter (Da) mm - 440
Maximum Undercut Radius (ra) mm - 4
Basic dynamic Radial Load Rating (Cr) N - 2750000
Basic Static Radial Load Rating (C0r) N - 4200000
Calculation Factor (e) - 0.28
Calculation Factor (Y1) - 2.37
Calculation Factor (Y2) - 3.53
Calculation Factor (Y0) - 2.32
Radial Fatigue Load Limit (Cur) N - 325000
Limiting Speed (nG) 1/min - 355
Suffixes:
BE - Floating Rib Washer on Inner Ring
XL - X-Life
2RSR - Steel-Reinforced Lip Seal on Both Sides Made From Nitrile Rubber (NBR), Grease Filling Level 25% to 40%, Filled with High-Pressure Grease
