Description
Brand - FAG
Item Number - 23156-B-MB-C3-W209D FAG
Category - Spherical Roller Bearing
Also known as - 23156B.MB.C3
Inner (d) MM - 280
Outer (D) MM - 460
Width (B) MM - 146
Weight (kg) - 99.5
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Hardened Outer / Inner Rings
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution

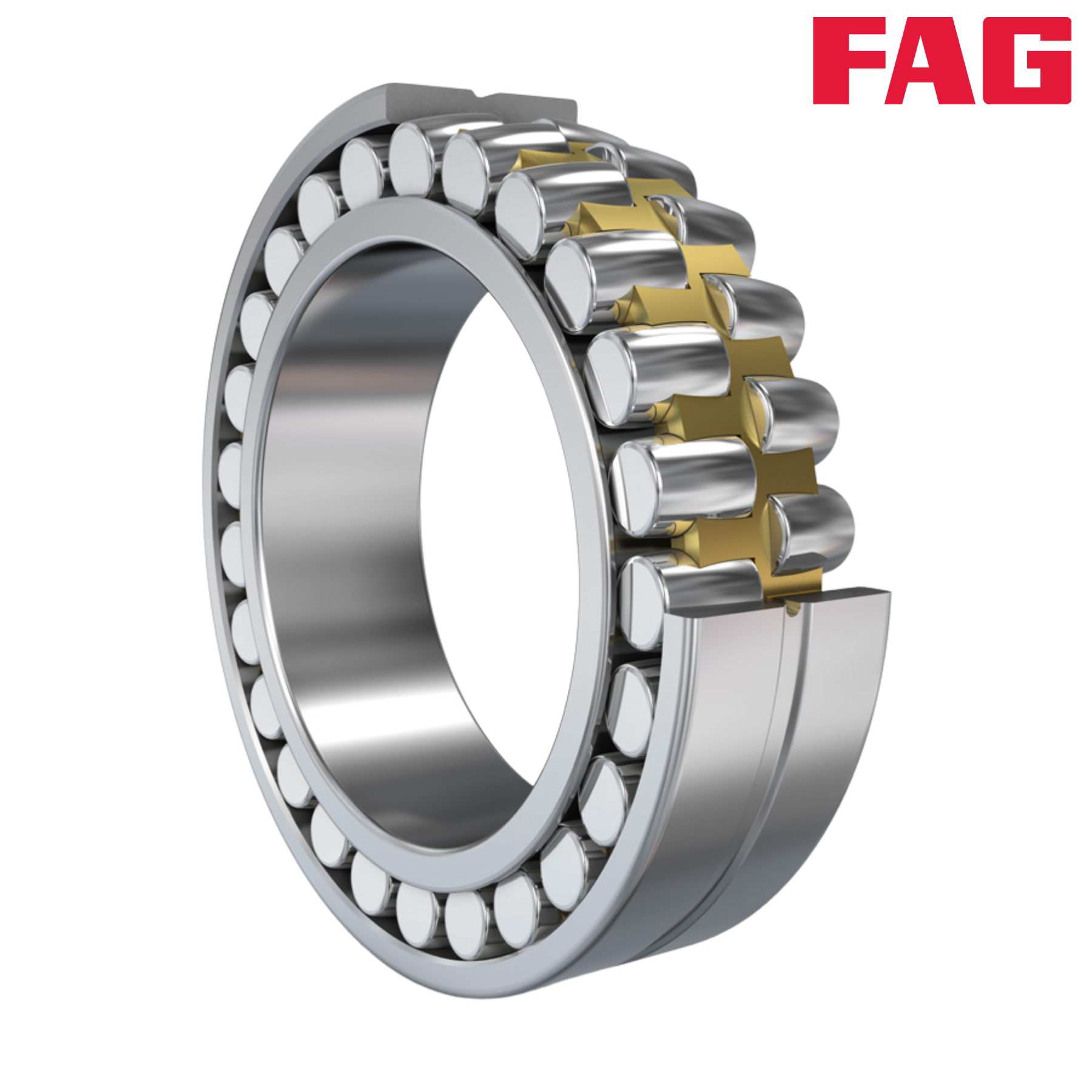

** Image is for representation purposes only
