Description

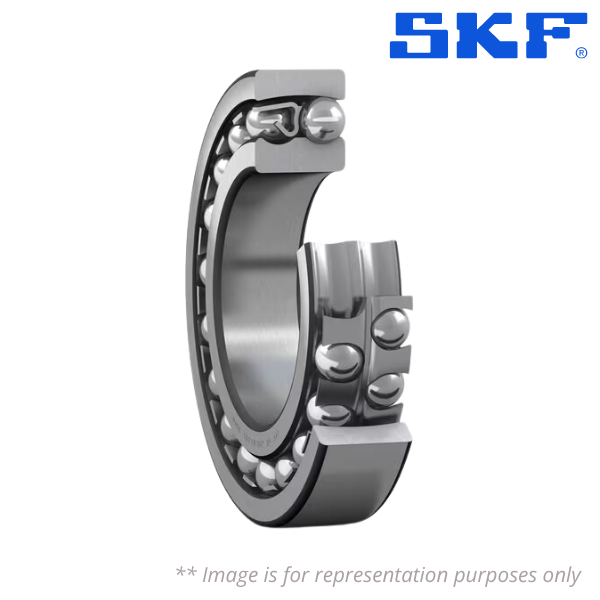

Brand - SKF
Item Number - 2314M/C4/R851 SKF
Also known as - 2314M/C4 2314-M-C4
Category - Self Aligning Ball Bearing Double Row
Inner (d) MM - 70
Outer (D) MM - 150
Width (B) MM - 51
Inner (d) Inch - 2.7559
Outer (D) Inch - 5.9055
Width (B) Inch - 2.0079
Weight (kg) - 3.9
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - R8 - Special Modification
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
