Description
Brand - FAG
Item Number - 23144-BE-XL-T52BW FAG
Category - Spherical Roller Bearing
Also known as - 0645736130000 23144-BE-T52BW
EAN - 4012802473896
Inner (d) MM - 220
Outer (D) MM - 370
Width (B) MM - 120
Inner (d) Inch - 8.6614
Outer (D) Inch - 14.5669
Width (B) Inch - 4.7244
Weight (kg) - 52
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - Cn Normal Internal Play
Precision - Higher Running Acc. ISO Cl.5
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 2700000
Radial Dynamic Load Rating Cr (N) - 1860000

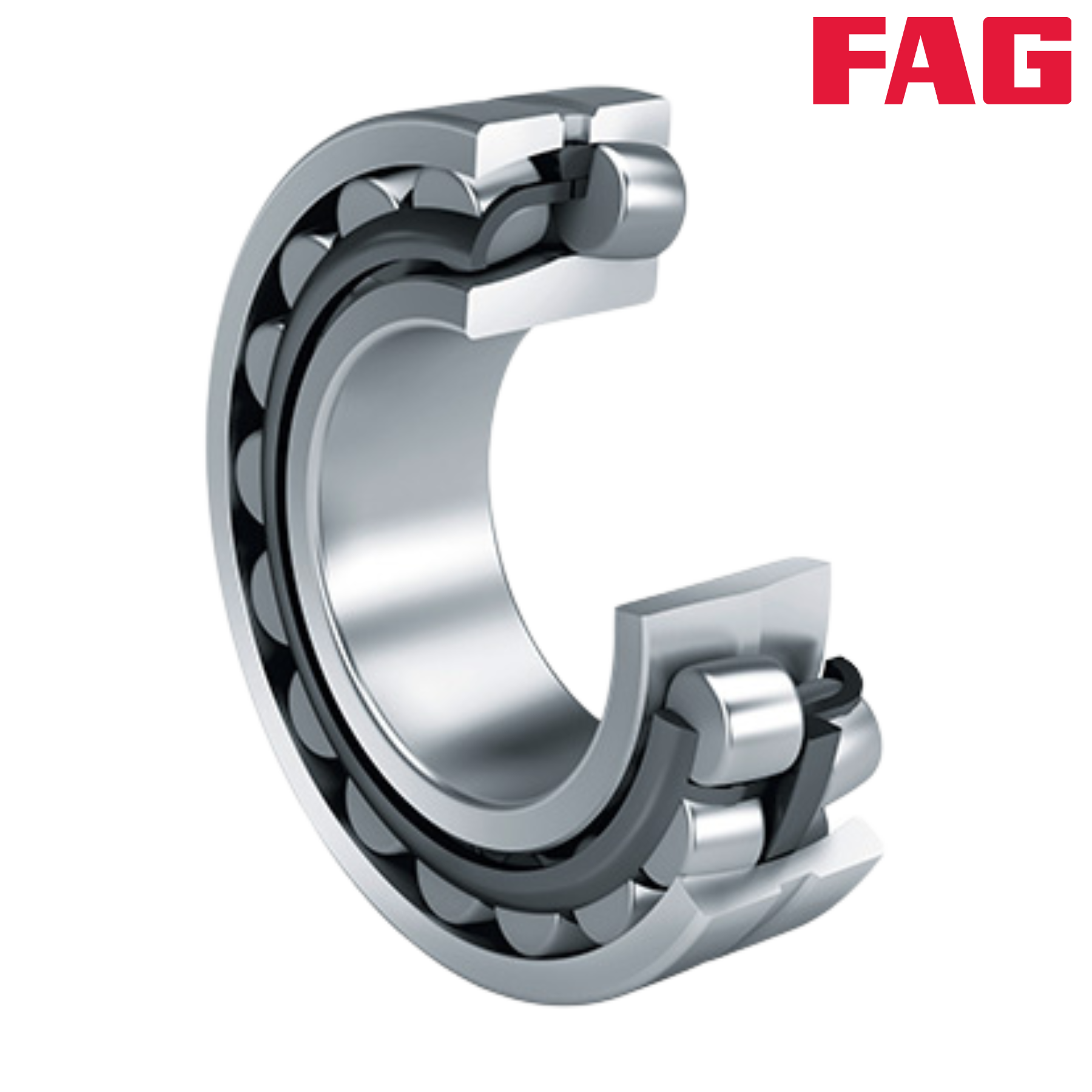

** Image is for representation purposes only
