Description
Brand - FAG
Item Number - 23144-BE-XL-K-W209B-C4 FAG
Category - Spherical Roller Bearing
Also known as - 0617467110040 23144-BE-K-C4 23144-BE-K-W209B-C4 23144CCK/C4W33
EAN - 4012802352542
Inner (d) MM - 220
Outer (D) MM - 370
Width (B) MM - 120
Inner (d) Inch - 8.6614
Outer (D) Inch - 14.5669
Width (B) Inch - 4.7244
Weight (kg) - 50.5
Bore - K - 1:12 Tapered Bore (Standard for Most Types)
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Hardened Inner Ring
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
BE - Maximum Capacity Design

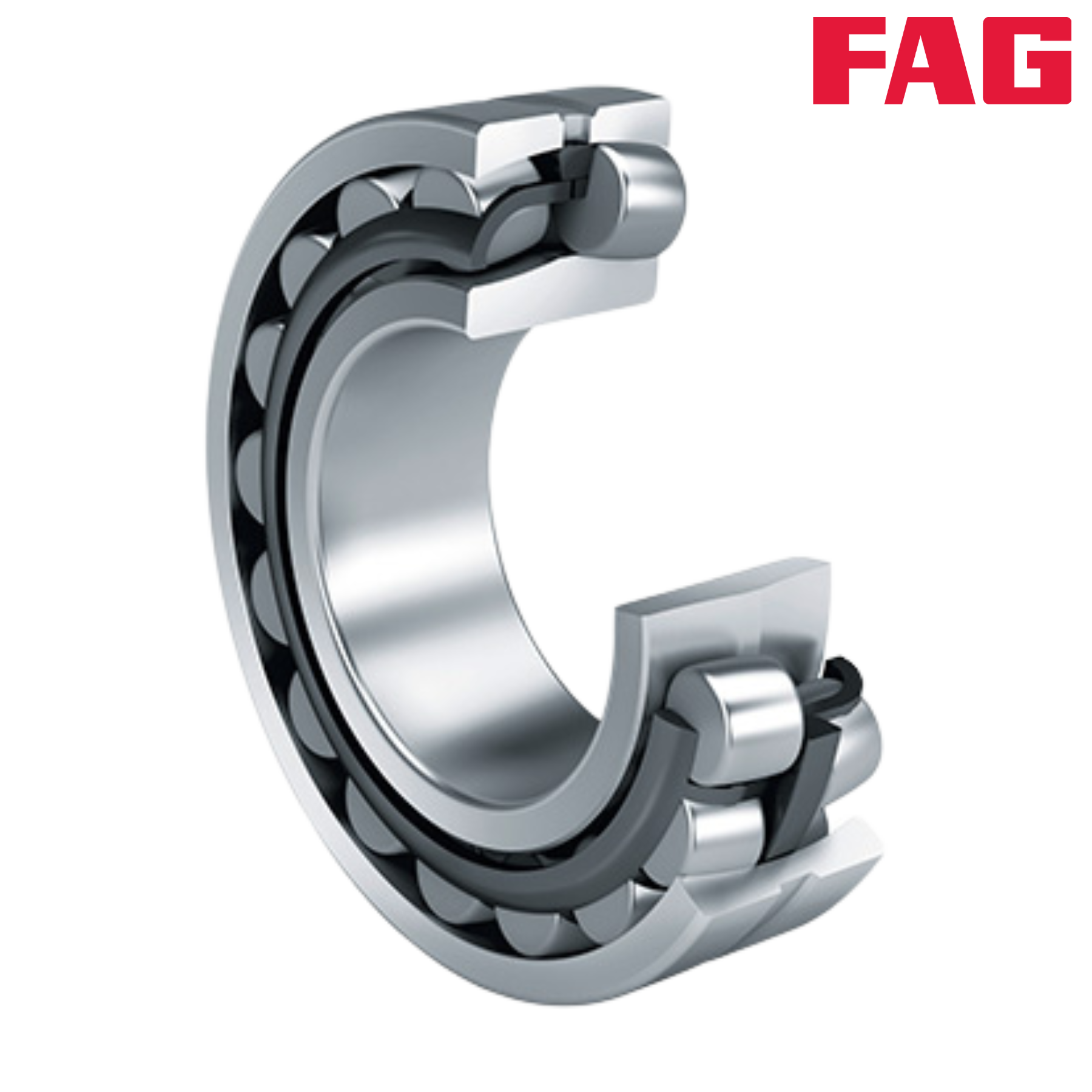

** Image is for representation purposes only
