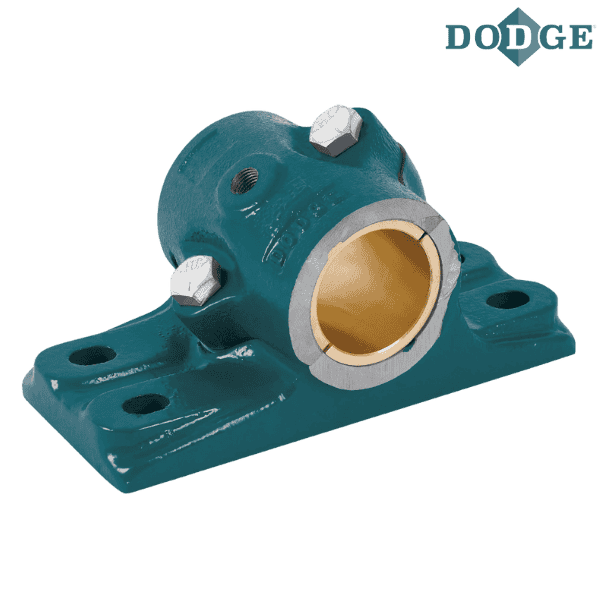

231114 DODGE - P4B-BZA-415

Brand - DODGE
Item Number - 231114 DODGE - P4B-BZA-415
Category - Sleeve Bearings - Angle Bronze-Bushed Pillow Blocks
Shaft Size (inch) - 4.9375
Description - P4B-BZA-415
Weight (lbs) - 109
Used on Frame - HD-400

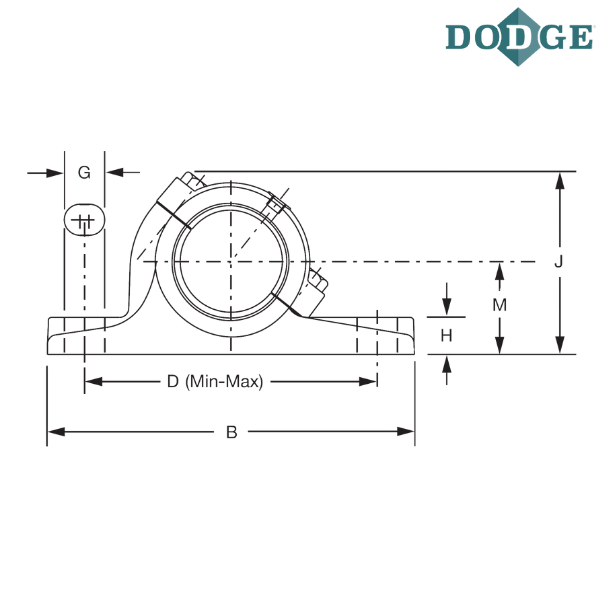

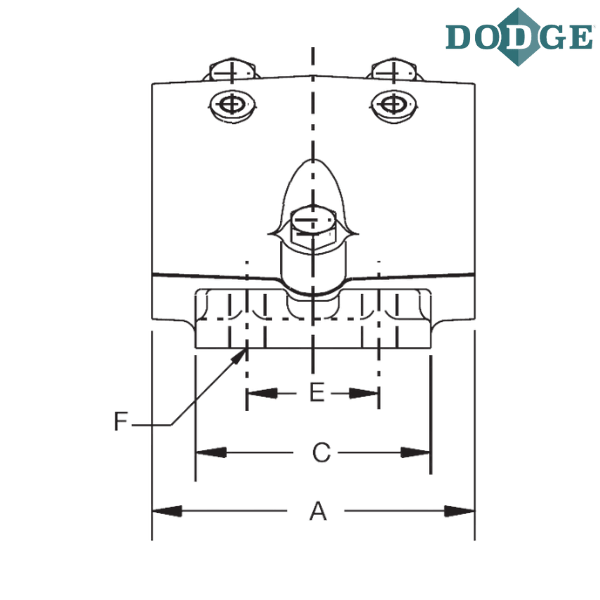

Length Through Bore (A) inch - 10
Overall Length (B) inch - 18
C (inch) - 7
Bolt to Bolt Minimum Distance (D min) inch - 14.3125
Bolt to Bolt Maximum Distance (D max) inch - 15.6875
E (inch) - 4
F-Bolt Diameter (inch) - 0.875
G (inch) - 1.625
H (inch) - 1.875
Overall Height (J) inch - 9.1875
Base to Center Height (M) inch - 4.5
Cap Bolts Quantity - 3
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Quantity) - 1
Grease Cups (Size) - 4

Notes :
P4B - Pillow Block, 4 Bolt Base
BZA - Bronze Bushed Angle
415 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
