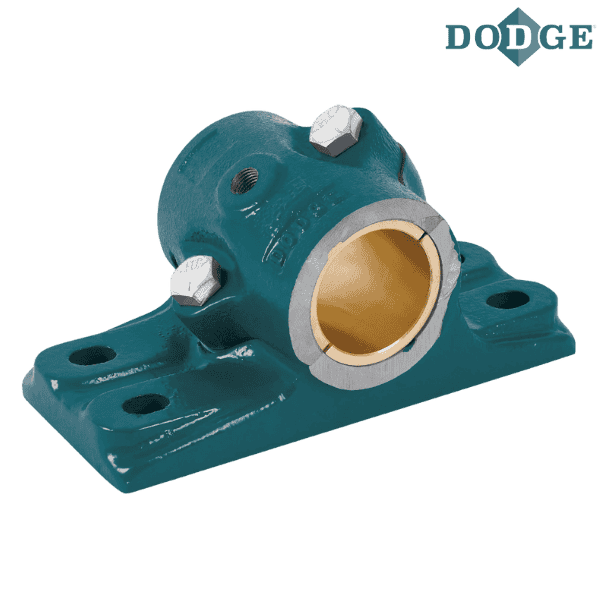

231096 DODGE - P4B-BZA-307

Brand - DODGE
Item Number - 231096 DODGE - P4B-BZA-307
Category - Sleeve Bearings - Angle Bronze-Bushed Pillow Blocks
Shaft Size (inch) - 3.4375
Description - P4B-BZA-307
Weight (lbs) - 46
Used on Frame - HD-300

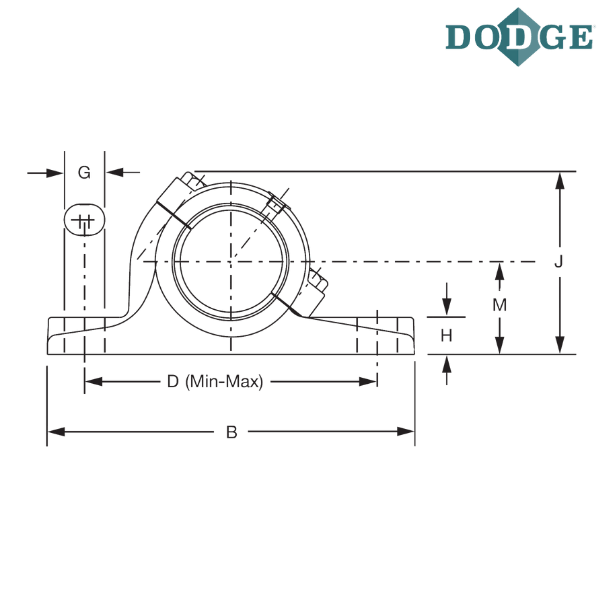

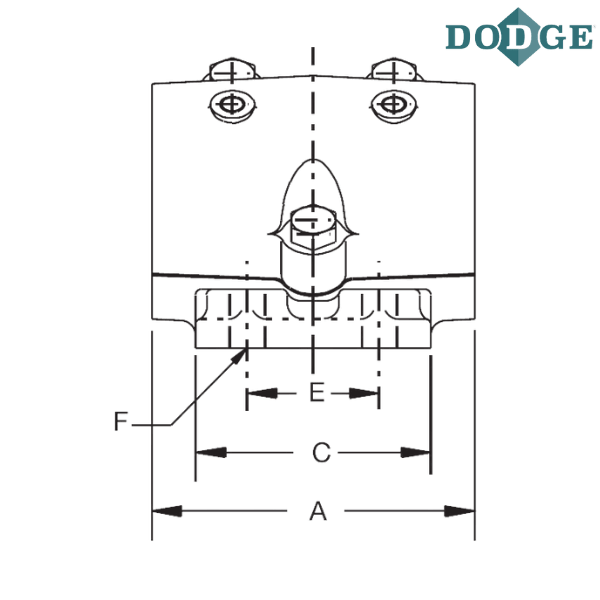

Length Through Bore (A) inch - 7
Overall Length (B) inch - 13
C (inch) - 5
Bolt to Bolt Minimum Distance (D min) inch - 10.0625
Bolt to Bolt Maximum Distance (D max) inch - 10.9375
E (inch) - 2.75
F-Bolt Diameter (inch) - 0.75
G (inch) - 1.25
H (inch) - 1.5
Overall Height (J) inch - 7.125
Base to Center Height (M) inch - 3.5
Cap Bolts Quantity - 2
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Quantity) - 1
Grease Cups (Size) - 3

Notes :
P4B - Pillow Block, 4 Bolt Base
BZA - Bronze Bushed Angle
307 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
