Description
Brand - TIMKEN
Item Number - 23100/23256-B TIMKEN
Also Known As - 23100 - 23256-B
Category - Single Row Tapered Roller Bearing (TSF Type)

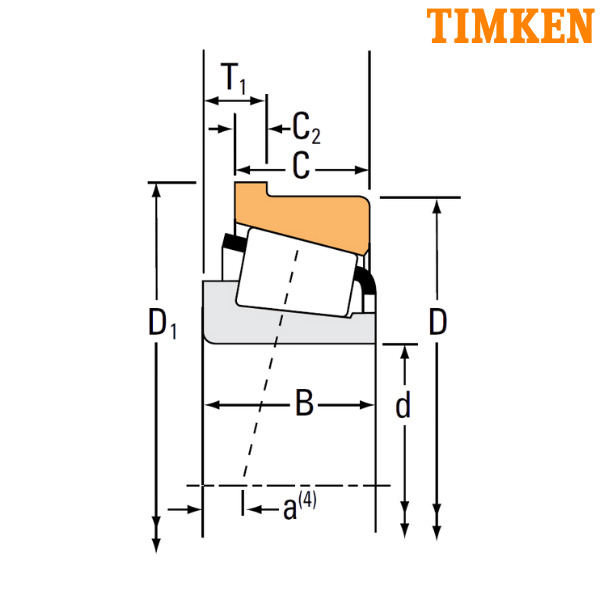

Bore Diameter (d) mm - 25.4
Bore Diameter (d) inch - 1
Outer Diameter (D) mm - 65.088
Outer Diameter (D) inch - 2.5625
Width (T1) mm - 10.32
Width (T1) inch - 0.4063
Dynamic Load Rating (C1) N - 54600
Dynamic Load Rating (C1) lbf - 12300
Factor (e) - 0.73
Factor (Y) - 0.82
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) N - 14200
Basic Dynamic Radial Load Rating (90 Million Revolution) (C90) lbf - 3180
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) N - 17700
Basic Dynamic Thrust Load Rating (90 Million Revolution) (Ca90) lbf - 3990
Ratio of Basic Dynamic Radial Load Rating to Basic Dynamic Thrust Rating (K) - 0.8
Basic Static Radial Load Rating (C0) N - 55800
Basic Static Radial Load Rating (C0) lbf - 12500
Cone Width (B) mm - 21.463
Cone Width (B) inch - 0.845
Cup Width (C) mm - 15.875
Cup Width (C) inch - 0.625
Effective Center Location (a) mm - -2.3
Effective Center Location (a) inch - -0.09
Outer Diameter of Outer Ring Flange (D1) mm - 68.953
Outer Diameter of Outer Ring Flange (D1) inch - 2.7147
Flange Width (C2) mm - 3.97
Flange Width (C2) inch - 0.1563

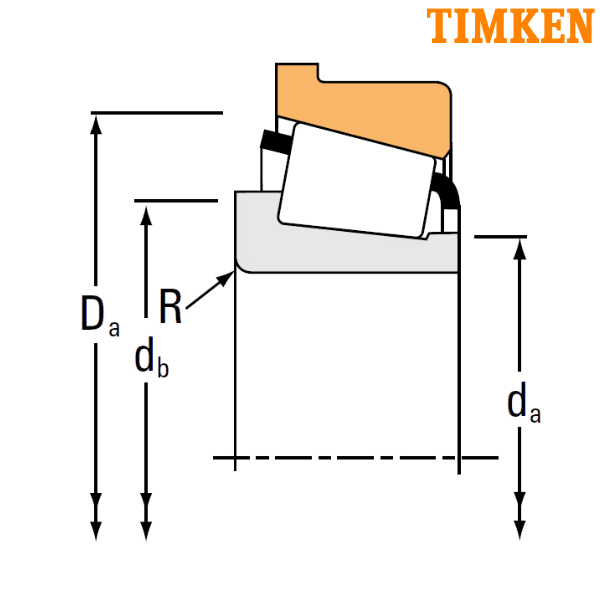

Maximum Shaft Fillet Radius (R) mm - 1.5
Maximum Shaft Fillet Radius (R) inch - 0.06
Cone Frontface Backing Diameter (da) mm - 34.5
Cone Frontface Backing Diameter (da) inch - 1.36
Cone Backface Backing Diameter (db) mm - 39
Cone Backface Backing Diameter (db) inch - 1.54
Cup Frontface Backing Diameter (Da) mm - 63
Cup Frontface Backing Diameter (Da) inch - 2.48
Geometry Factor (G1) - 11.3
Geometry Factor (G2) - 6.6
Geometry Factor (Cg) - 0.07
Weight (kg) - 0.37
Weight (lbs) - 0.83
Inner Part Number - 23100
Outer Part Number - 23256-B

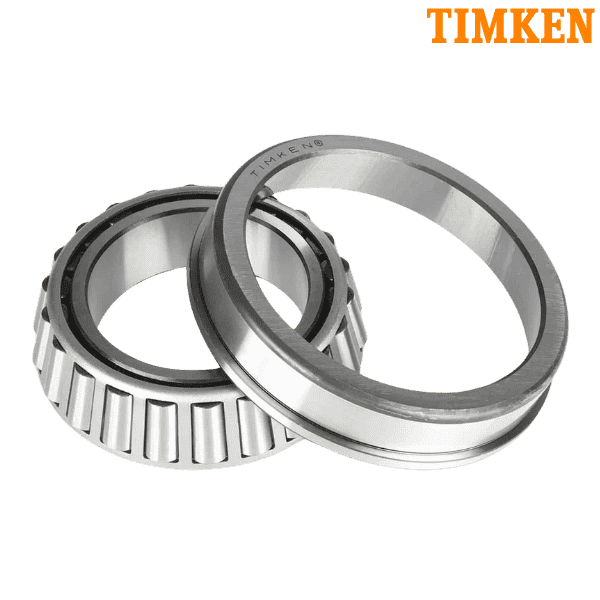

TSF - Single-Row Bearing with a Flange on the Outer Ring
** Images are for representation purposes only
