Description
Brand - FAG
Item Number - 230SM630-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 973

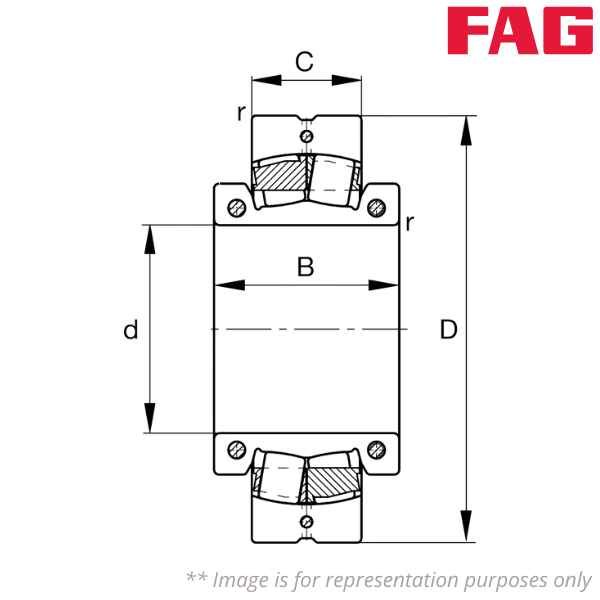

Inner Diameter (d) mm - 630
Outer Diameter (D) mm - 980
Outer Ring Width (C) mm - 230
Inner Ring Width (B) mm - 355
Minimum Chamfer Dimension (r) mm - 7.5
Basic Radial Dynamic Load Rating (Cr) kN - 6400
Basic Radial Static Load Rating (C0r) kN - 13700
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.22
Dynamic Axial Load Factor (Y1) - 3.01
Dynamic Axial Load Factor (Y2) - 4.48
Static Axial Load Factor (Y0) - 2.94
Fatigue Radial Load Limit (Cur) kN - 950
Maximum Axial Load (Fa) - 94.2
Limiting speed (nG) min–1 - 160
Tightening Torque Clamping Screw (Ni) Nm - 1000
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 230/670K
Adapter Sleeve - H30/670HG
