Description
Brand - FAG
Item Number - 230SM530-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 556

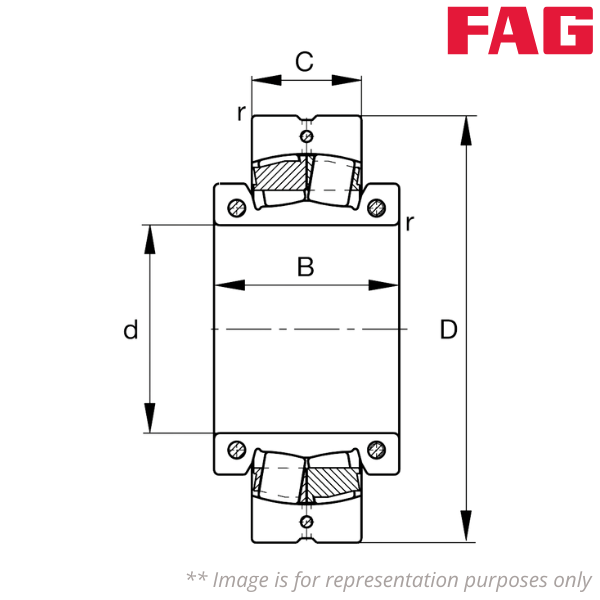

Inner Diameter (d) mm - 530
Outer Diameter (D) mm - 820
Outer Ring Width (C) mm - 195
Inner Ring Width (B) mm - 300
Minimum Chamfer Dimension (r) mm - 6
Basic Radial Dynamic Load Rating (Cr) kN - 4650
Basic Radial Static Load Rating (C0r) kN - 9650
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.23
Dynamic Axial Load Factor (Y1) - 2.95
Dynamic Axial Load Factor (Y2) - 4.4
Static Axial Load Factor (Y0) - 2.89
Fatigue Radial Load Limit (Cur) kN - 700
Maximum Axial Load (Fa) - 94.2
Limiting speed (nG) min–1 - 160
Tightening Torque Clamping Screw (Ni) Nm - 580
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 230/560K
Adapter Sleeve - H30/560HG
