Description
Brand - FAG
Item Number - 230SM420-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 246

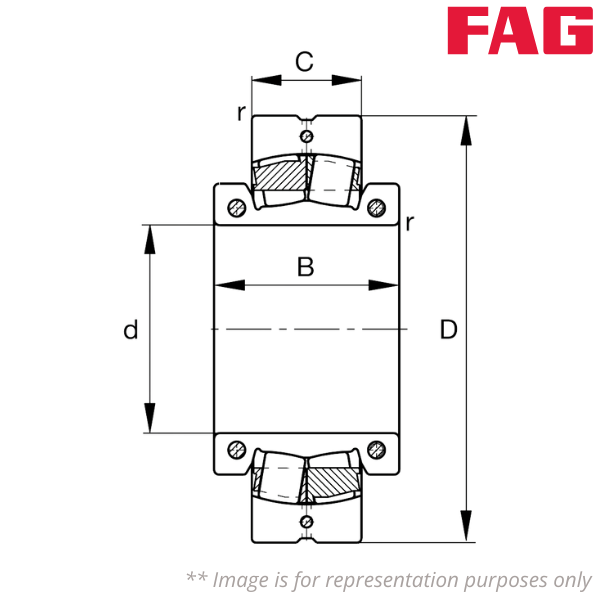

Inner Diameter (d) mm - 420
Outer Diameter (D) mm - 650
Outer Ring Width (C) mm - 157
Inner Ring Width (B) mm - 235
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 3100
Basic Radial Static Load Rating (C0r) kN - 5850
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.21
Dynamic Axial Load Factor (Y1) - 3.2
Dynamic Axial Load Factor (Y2) - 4.77
Static Axial Load Factor (Y0) - 3.13
Fatigue Radial Load Limit (Cur) kN - 425
Maximum Axial Load (Fa) - 60.5
Limiting speed (nG) min–1 - 340
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 23088K
Adapter Sleeve - AHX3088GH 1)
