Description
Brand - FAG
Item Number - 230SM115-MA FAG
Category - Split Spherical Roller Bearing

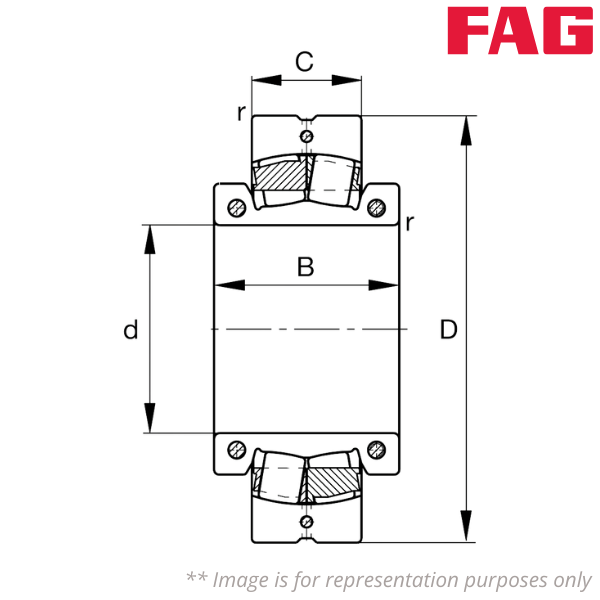

Weight (m) kg - 9.5
Inner Diameter (d) mm - 115
Outer Diameter (D) mm - 200
Outer Ring Width (C) mm - 52
Inner Ring Width (B) mm - 90
Minimum Chamfer Dimension (r) mm - 2
Basic Radial Dynamic Load Rating (Cr) kN - 305
Basic Radial Static Load Rating (C0r) kN - 455
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.22
Dynamic Axial Load Factor (Y1) - 3.04
Dynamic Axial Load Factor (Y2) - 4.53
Static Axial Load Factor (Y0) - 2.97
Fatigue Radial Load Limit (Cur) kN - 35
