Description
Brand - FAG
Item Number - 230S.1500 FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 192

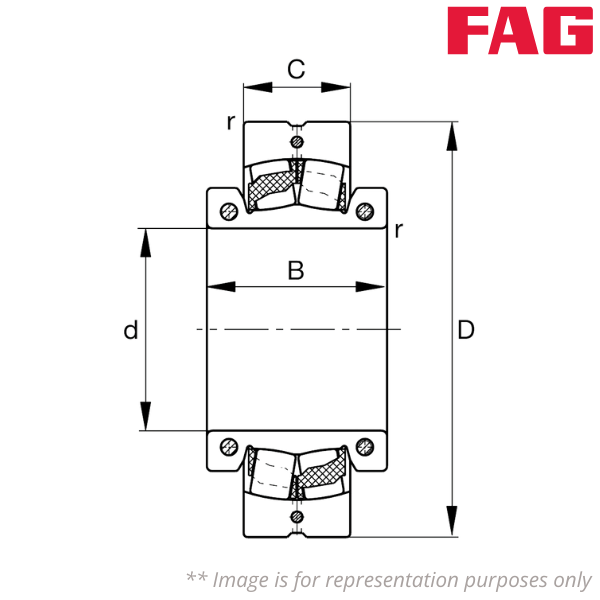

Inner Diameter (d) inch - 15
Inner Diameter (d) mm - 381
Outer Diameter (D) mm - 600
Outer Ring Width (C) mm - 148
Inner Ring Width (B) mm - 225
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 2700
Basic Radial Static Load Rating (C0r) kN - 5100
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.21
Dynamic Axial Load Factor (Y1) - 3.2
Dynamic Axial Load Factor (Y2) - 4.77
Static Axial Load Factor (Y0) - 3.13
Fatigue Radial Load Limit (Cur) kN - 390
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 380
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 23080K
Adapter Sleeve - SNP3080.1500
Housing - H3080HG.1500
