Description
Brand - FAG
Item Number - 230S.1200 FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 96.5

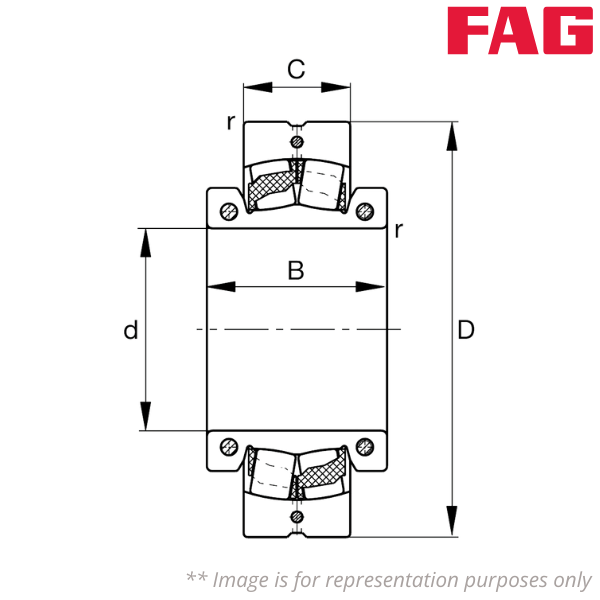

Inner Diameter (d) inch - 12
Inner Diameter (d) mm - 304.8
Outer Diameter (D) mm - 480
Outer Ring Width (C) mm - 121
Inner Ring Width (B) mm - 186
Minimum Chamfer Dimension (r) mm - 4
Basic Radial Dynamic Load Rating (Cr) kN - 1860
Basic Radial Static Load Rating (C0r) kN - 3200
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.23
Dynamic Axial Load Factor (Y1) - 2.9
Dynamic Axial Load Factor (Y2) - 4.31
Static Axial Load Factor (Y0) - 2.83
Fatigue Radial Load Limit (Cur) kN - 255
Maximum Axial Load (Fa) - 32
Limiting speed (nG) min–1 - 430
Tightening Torque Clamping Screw (Ni) Nm - 120
Tightening Torque Clamping Screw (Ma) Nm - 69
Bearing Designation - 23064K
Adapter Sleeve - SNP3064.1200
Housing - H3064HG.1200
