Description
Brand - FAG
Item Number - 230S.1008 FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 59.7

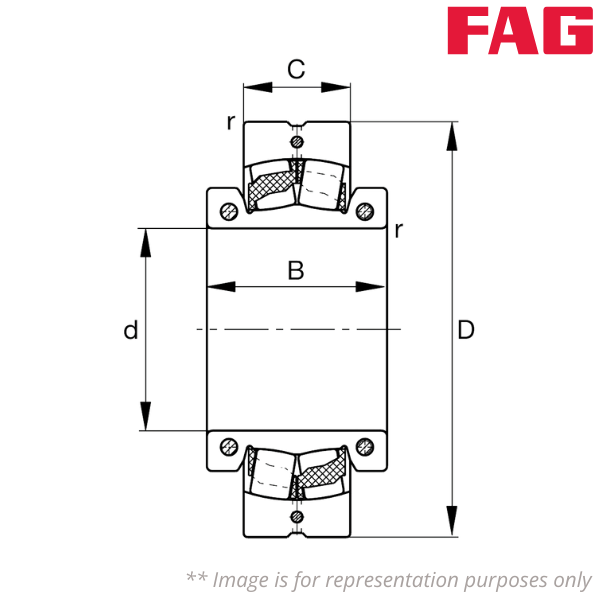

Inner Diameter (d) inch - 10.5
Inner Diameter (d) mm - 266.7
Outer Diameter (D) mm - 420
Outer Ring Width (C) mm - 106
Inner Ring Width (B) mm - 170
Minimum Chamfer Dimension (r) mm - 4
Basic Radial Dynamic Load Rating (Cr) kN - 1460
Basic Radial Static Load Rating (C0r) kN - 2450
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.23
Dynamic Axial Load Factor (Y1) - 2.95
Dynamic Axial Load Factor (Y2) - 4.4
Static Axial Load Factor (Y0) - 2.89
Fatigue Radial Load Limit (Cur) kN - 200
Maximum Axial Load (Fa) - 32
Limiting speed (nG) min–1 - 500
Tightening Torque Clamping Screw (Ni) Nm - 120
Tightening Torque Clamping Screw (Ma) Nm - 35
Bearing Designation - 23056K
Adapter Sleeve - SNP3056.1008
Housing - H3056.1008
