Description
Brand - NILOS
Item Number - 23052 JV NILOS
Category - NILOS-RING for Double Row Spherical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 290 mm
Dimension (c) - 342 mm
Outer Diamter (D) - 400 mm
Width (h) - 6.2 mm
Material Thickness (s) - 0.7 mm
Description of Compatible Bearing (230 Series) :
Bearing Part Number - 23052
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 260 mm
Outer Diameter (D) - 400 mm
Width (B) - 104 mm

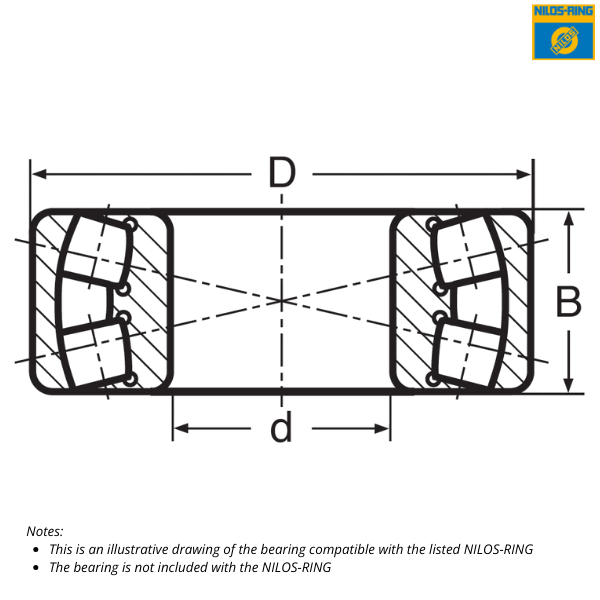

♦ ♦ Images are for representation purposes only
Item Number - 23052 JV NILOS
Category - NILOS-RING for Double Row Spherical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 290 mm
Dimension (c) - 342 mm
Outer Diamter (D) - 400 mm
Width (h) - 6.2 mm
Material Thickness (s) - 0.7 mm
Description of Compatible Bearing (230 Series) :
Bearing Part Number - 23052
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 260 mm
Outer Diameter (D) - 400 mm
Width (B) - 104 mm
♦ ♦ Images are for representation purposes only
