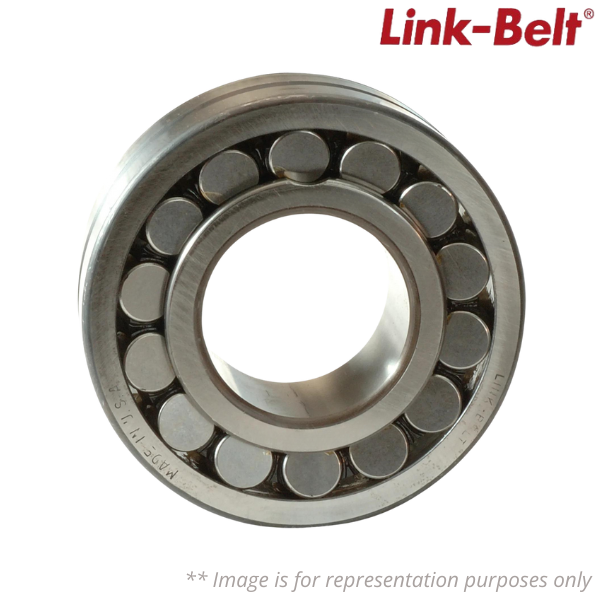

23048LBKC0 Link-Belt

Brand - Link-Belt
Part Number - 23048LBKC0 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 662327195946
Material - 10438856
Model - 23000LBK
Bore Size (in) - 8.6614 in
Locking Type - Tapered Bore
Bearing Brand - LINK-BELT SPHER SPLIT BLKS TU
Bearing Type - SPHERICAL ROLLER BRG
Bore Type - Tapered
C Dynamic Load Rating - 260000 lb
Co Static Load Rating - 490000 lb
Housing Fillet Radius (in) - 0.1 in
Maximum Shoulder Diameter (in) - 13.60 in
Maximum Speed (RPM) - 1000 GREASE - 1100 OIL rpm
Maximum Speed Using Grease (RPM) - 950 rpm
Maximum Speed Using Oil (RPM) - 1100 rpm
Minimum Shoulder Diameter (in) - 10 in
Mounted Clearance - C0 NORMAL
Weight (kg) - 32.97160248
Outside Diameter (in) - 14.1732 in
Retainer Type - BRASS
Sealed - None
Size Code - 23048
Vibration Frequency Fundamental Train - 0.0075 cps
Vibration Frequency Inner Ring Defect - 0.2645 cps
Vibration Frequency Outer Ring Defect - 0.2187 cps
Vibration Frequency Roller Spin - 0.0857 cps
