Description
Brand - FAG
Item Number - 23036-E1-XL-TVPB-C4 FAG
Category - Spherical Roller Bearing
Also known as - 0190011690040 23036-E1-TVPB-C4
EAN - 4026677871671
Inner (d) MM - 180
Outer (D) MM - 280
Width (B) MM - 74
Inner (d) Inch - 7.0866
Outer (D) Inch - 11.0236
Width (B) Inch - 2.9134
Weight (kg) - 16.9
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - P - Plastic Molded Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 1450000
Radial Dynamic Load Rating Cr (N) - 1040000

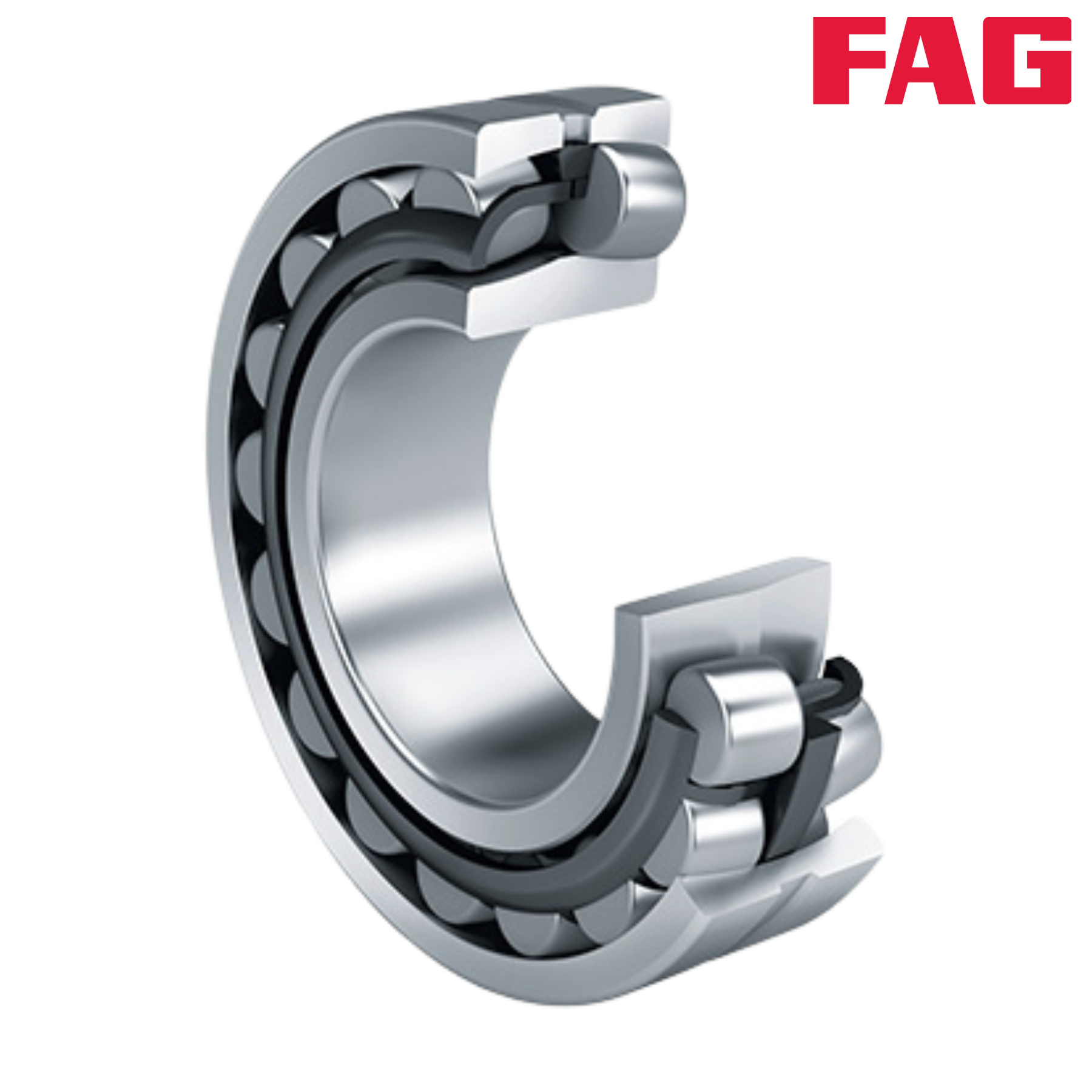

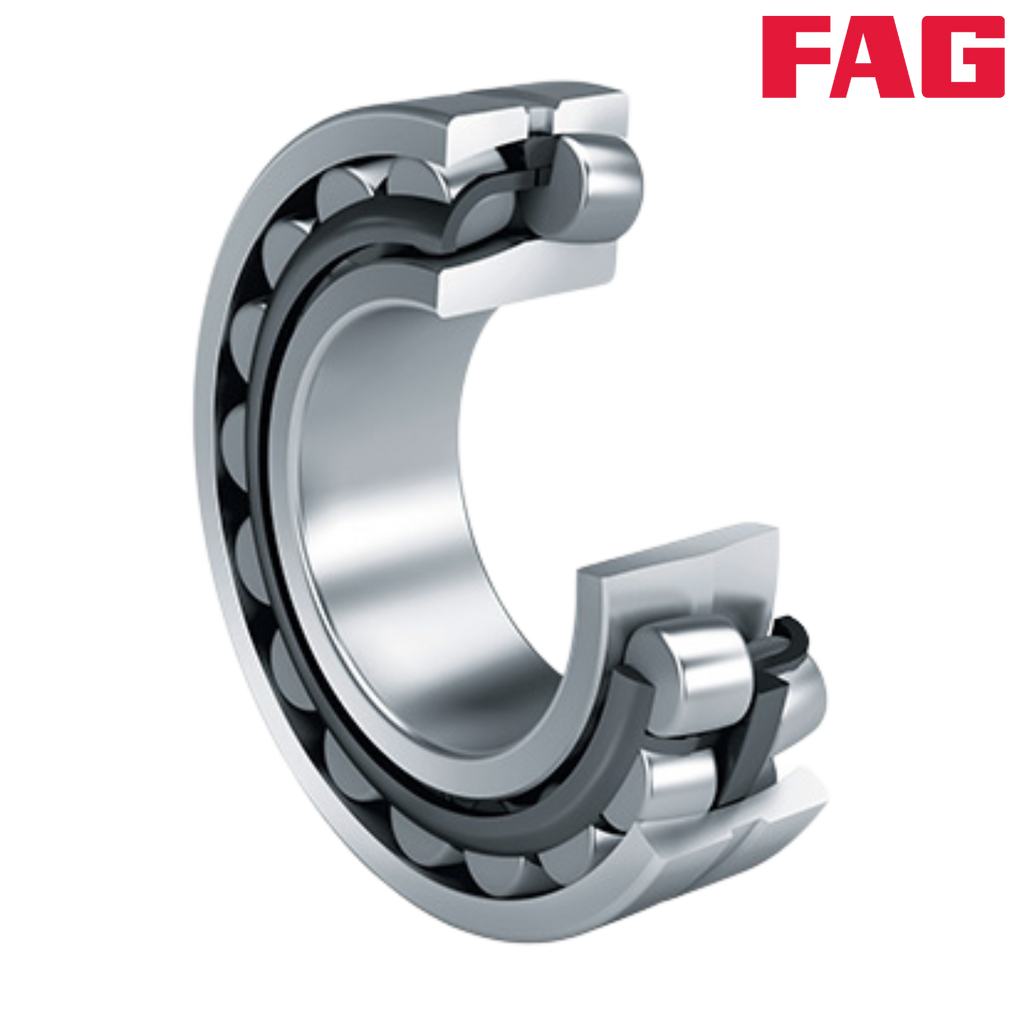

** Image is for representation purposes only
