230140 DODGE - P4B-BAA-800

Brand - DODGE
Item Number - 230140 DODGE - P4B-BAA-800
Category - Sleeve Bearings - Angle Babbitted Pillow Blocks
Shaft Size (inch) - 8
Description - P4B-BAA-800
Weight (lbs) - 400

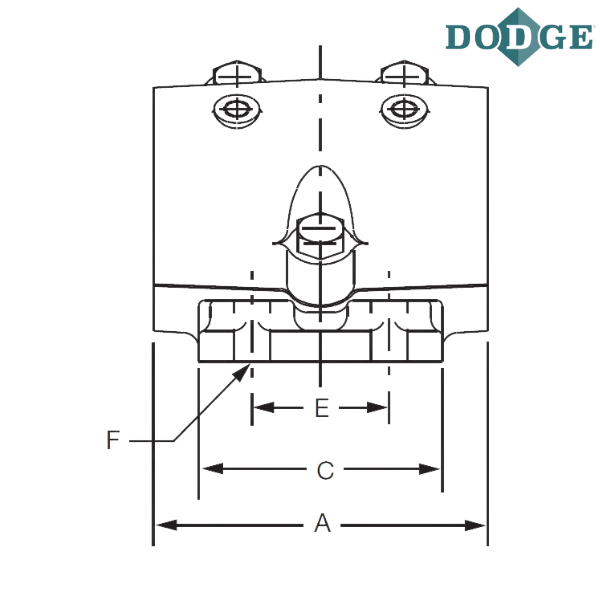

Length Through Bore (A) inch - 16

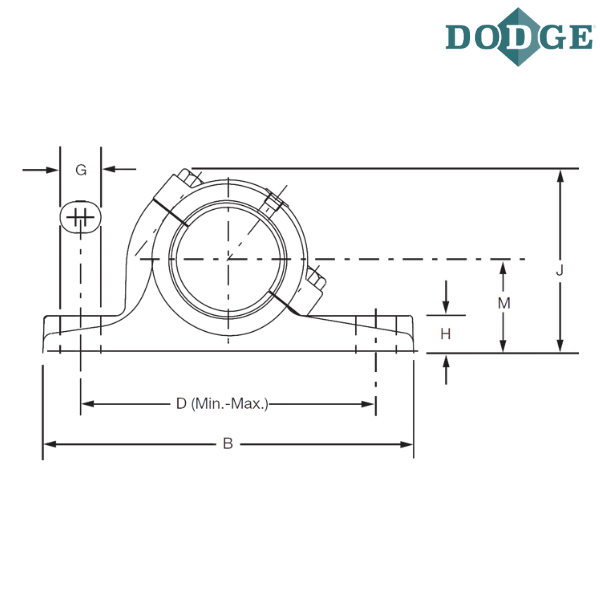

Overall Length (B) inch - 26
C (inch) - 11
Bolt to Bolt Minimum Distance (D min) inch - 20.6875
Bolt to Bolt Maximum Distance (D max) inch - 22.3125
E (inch) - 6.75
F-Bolt Diameter (inch) - 1.375
G (inch) - 2.25
H (inch) - 2.5
Overall Height (J) inch - 14.0625
Base to Center Height (M) inch - 7
Grease Cups (Pipe Tap) inch - 0.5
Grease Cups (Number Required) - 2
Grease Cups (Size) - 4

Notes :
P4B - Pillow Block, 4 Bolt Base
BAA - Babbitted Angle
800 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

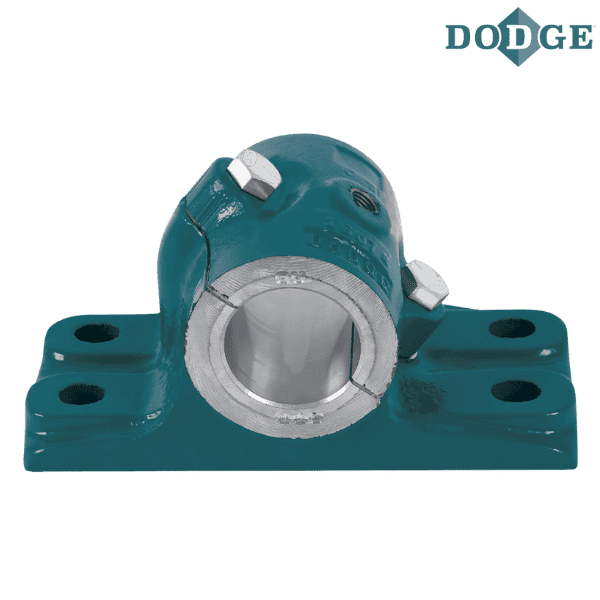

** Images are for representation purposes only
