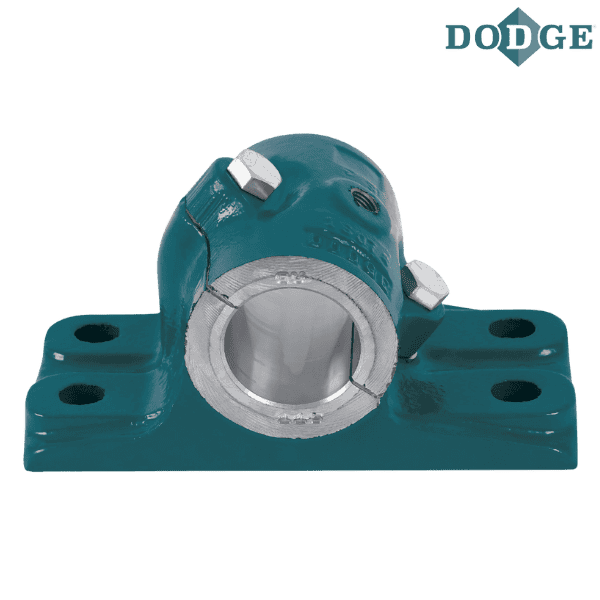

230059 DODGE - P4B-BAA-211

Brand - DODGE
Item Number - 230059 DODGE - P4B-BAA-211
Category - Sleeve Bearings - Angle Babbitted Pillow Blocks
Shaft Size (inch) - 2.6875
Description - P4B-BAA-211
Weight (lbs) - 24
Used on Frame - HB-250

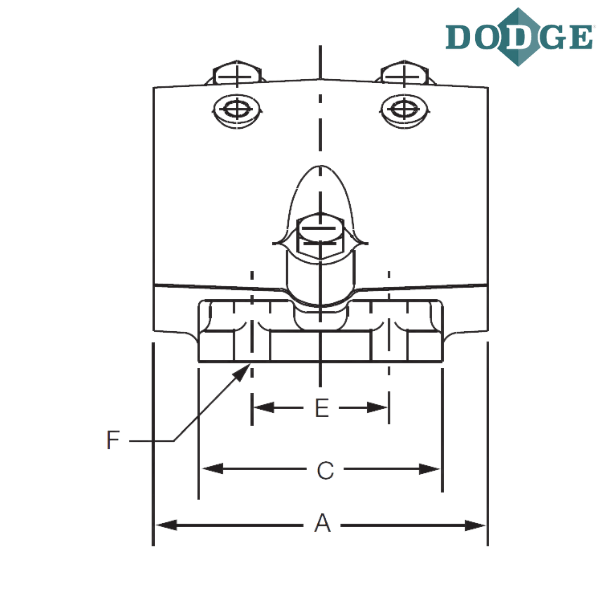

Length Through Bore (A) inch - 5.5

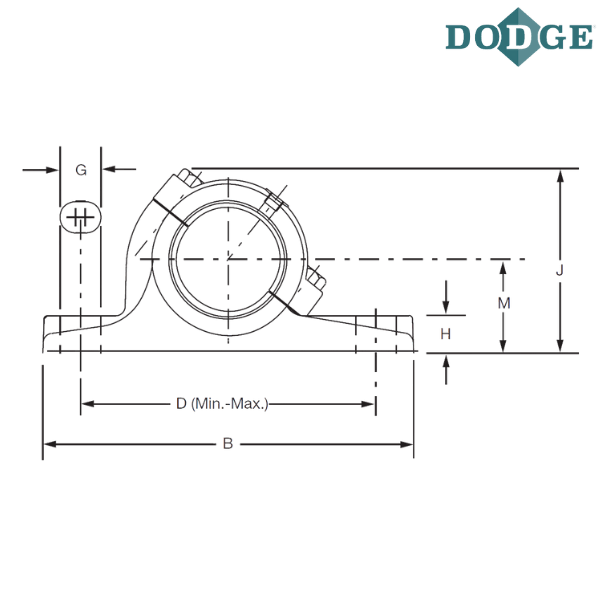

Overall Length (B) inch - 10.5
C (inch) - 4.25
Bolt to Bolt Minimum Distance (D min) inch - 7.9375
Bolt to Bolt Maximum Distance (D max) inch - 8.5625
E (inch) - 2.25
F-Bolt Diameter (inch) - 0.625
G (inch) - 1
H (inch) - 1.25
Overall Height (J) inch - 5.875
Base to Center Height (M) inch - 3
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups (Number Required) - 1
Grease Cups (Size) - 2

Notes :
P4B - Pillow Block, 4 Bolt Base
BAA - Babbitted Angle
211 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

** Images are for representation purposes only
