230056 DODGE - P4B-BAA-207

Brand - DODGE
Item Number - 230056 DODGE - P4B-BAA-207
Category - Sleeve Bearings - Angle Babbitted Pillow Blocks
Shaft Size (inch) - 2.4375
Description - P4B-BAA-207
Weight (lbs) - 20
Used on Frame - HD-200

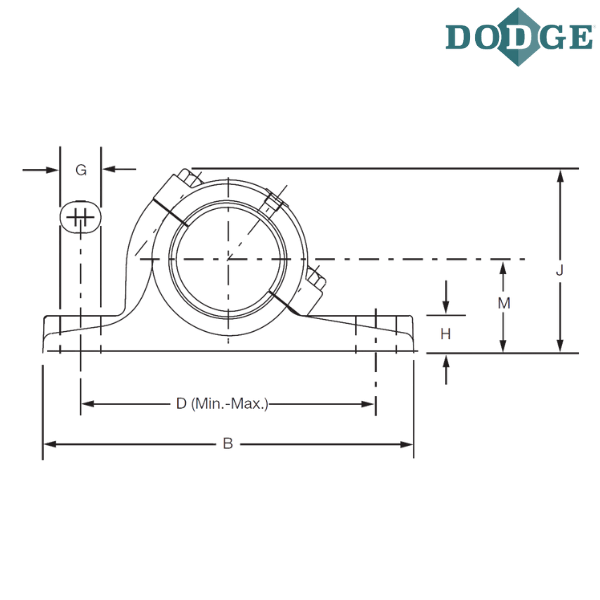

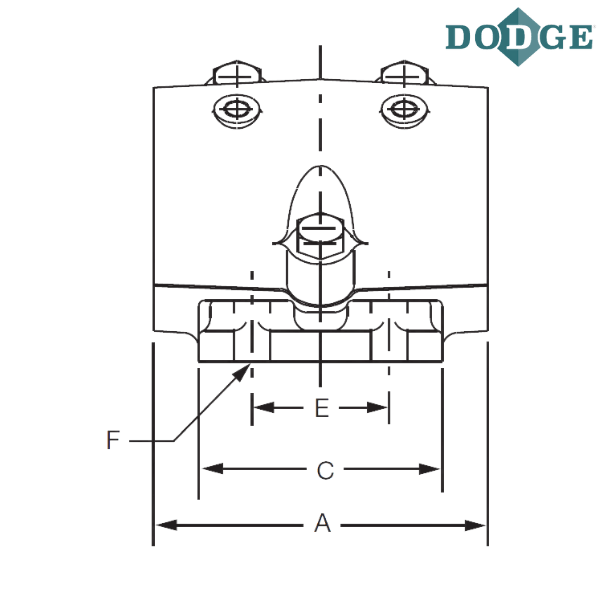

Length Through Bore (A) inch - 5
Overall Length (B) inch - 10.25
C (inch) - 4
Bolt to Bolt Minimum Distance (D min) inch - 7.6875
Bolt to Bolt Maximum Distance (D max) inch - 8.3125
E (inch) - 2
F-Bolt Diameter (inch) - 0.625
G (inch) - 1
H (inch) - 1.125
Overall Height (J) inch - 5.5625
Base to Center Height (M) inch - 2.75
Grease Cups (Pipe Tap) inch - 0.375
Grease Cups (Number Required) - 1
Grease Cups (Size) - 2

Notes :
P4B - Pillow Block, 4 Bolt Base
BAA - Babbitted Angle
207 - First Digit: Number Of Inches
Second And Third Digit: Sixteenths Of An Inch

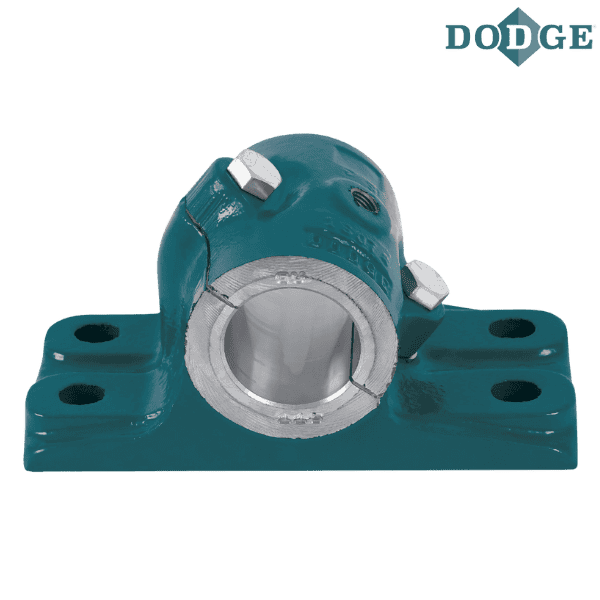

** Images are for representation purposes only
