Description
Brand - SCHEERER
Item Number - 22344-MA-W33 SCHEERER

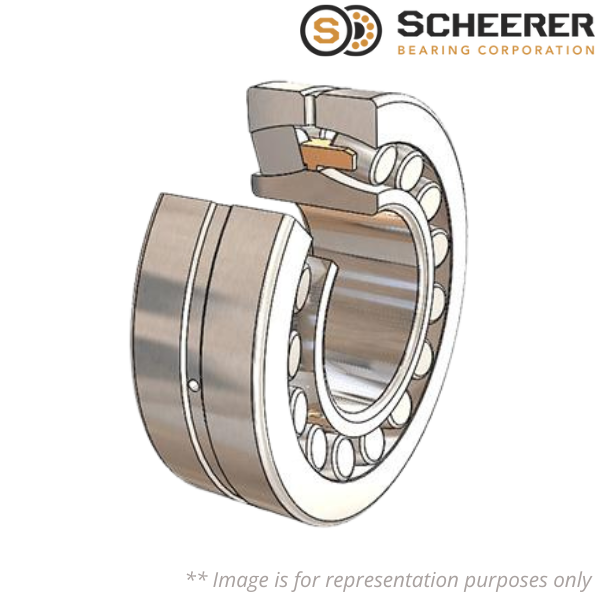

Category - Radial Spherical Roller Bearing
Configuration - MA, MB & EMSF
Inner Diameter (d) mm - 220
Outer Diameter (D) mm - 460
Width (b) mm - 145
Weight (M) kg - Available on Request
Dynamic Capacity (C) kg - 2839
Static Capacity (Co) kg - 3450
