Description
Brand - NILOS
Item Number - 22338 AV NILOS
Category - NILOS-RING for Double Row Spherical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 190 mm
Outer Diameter (a) - 369 mm
Dimension (C) - 285 mm
Widtth (h) - 5.8 mm
Material Thickness (s) - 0.7 mm

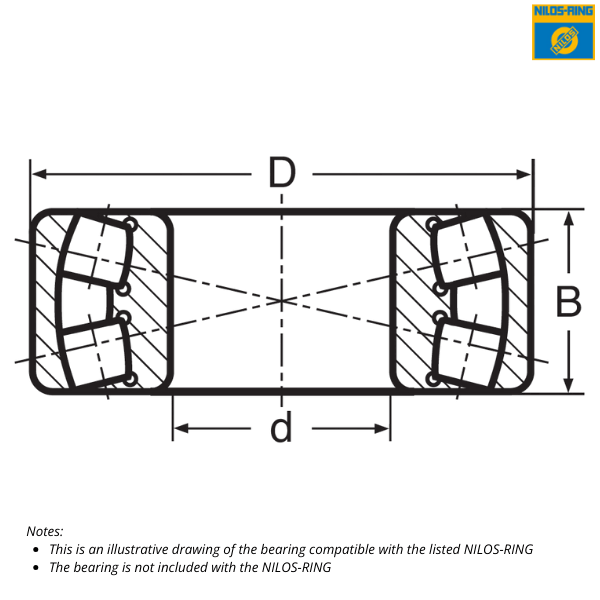

Description of Compatible Bearing (223 Series) :
Bearing Part Number - 22338
Bearing Type - Double Row Spherical Roller Bearing
Inner Diameter (d) - 190 mm
Outer Diameter (D) - 400 mm
Width (B) - 132 mm
♦♦ Images are for representation purposes only
Item Number - 22338 AV NILOS
Category - NILOS-RING for Double Row Spherical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (d) - 190 mm
Outer Diameter (a) - 369 mm
Dimension (C) - 285 mm
Widtth (h) - 5.8 mm
Material Thickness (s) - 0.7 mm
Description of Compatible Bearing (223 Series) :
Bearing Part Number - 22338
Bearing Type - Double Row Spherical Roller Bearing
Inner Diameter (d) - 190 mm
Outer Diameter (D) - 400 mm
Width (B) - 132 mm
♦♦ Images are for representation purposes only
