Description
Brand - FAG
Item Number - 22330E1A.M.C3.H40AB FAG
Category - Spherical Roller Bearing
Inner (d) MM - 150
Outer (D) MM - 320
Width (B) MM - 108
Weight (kg) - 41.96
Bore - C - Cylindrical Bore
Lubrication Enhancement - W26 - 6 Lubrication Holes in Inner Ring
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution

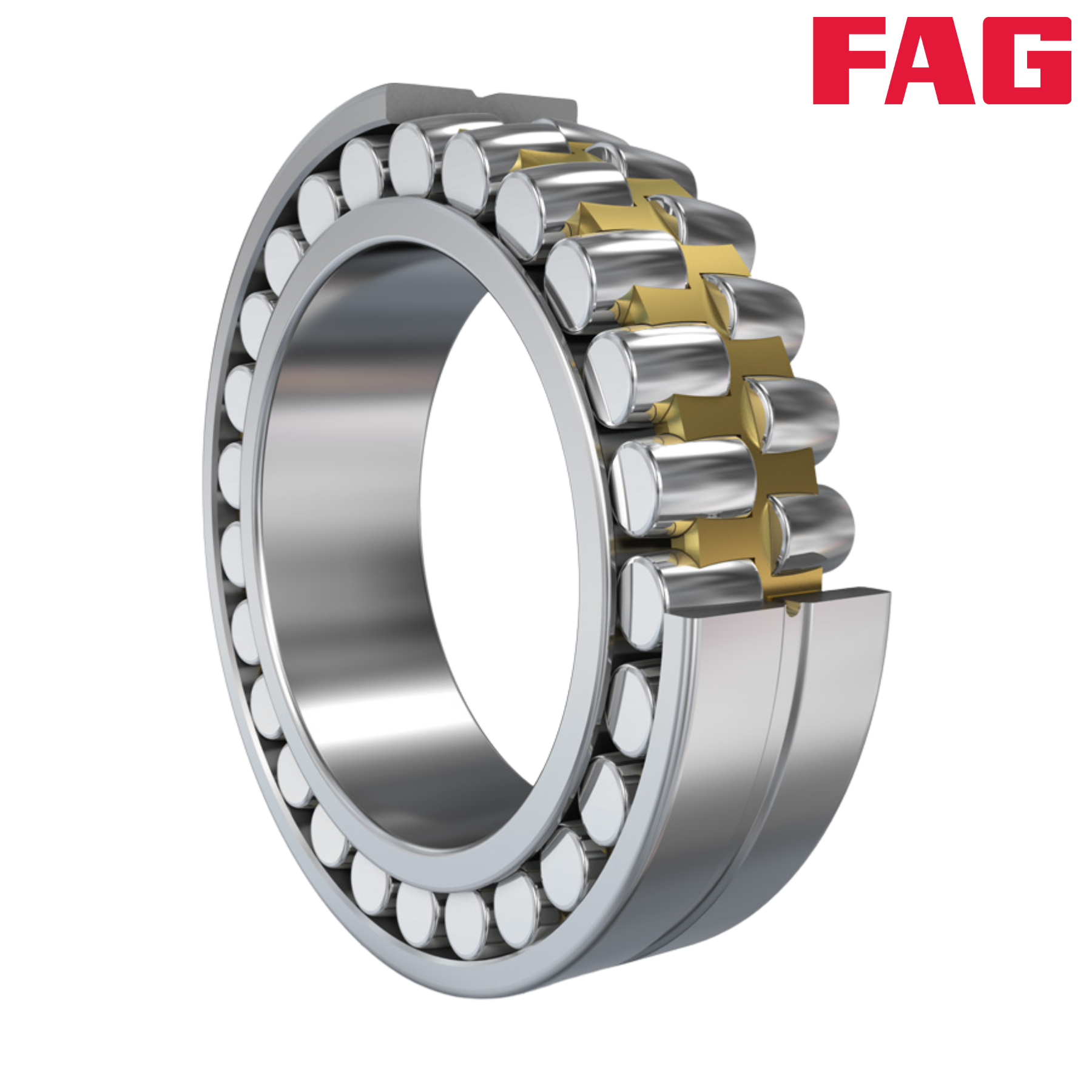

** Image is for representation purposes only
