Description
Brand - NTN

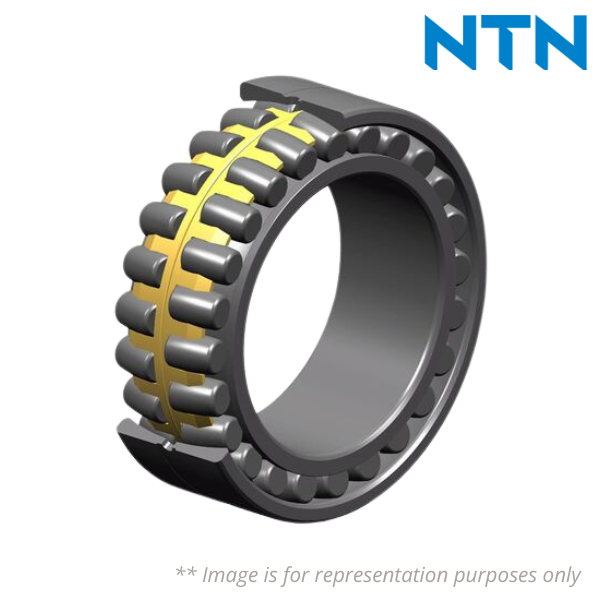

Item Number - 22330B L1 C3 PX6 NTN
Also known as - 22330B L1 C3 22330CA C3 W33 22330-E1A-M-C3 22330-E1A-XL-M-C3
Category - Spherical Roller Bearing
Inner (d) MM - 150
Outer (D) MM - 320
Width (B) MM - 108
Inner (d) Inch - 5.9055
Outer (D) Inch - 12.5984
Weight (kg) - 41.96
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - PX - Special Tolerance
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
