Description
Brand - SNR

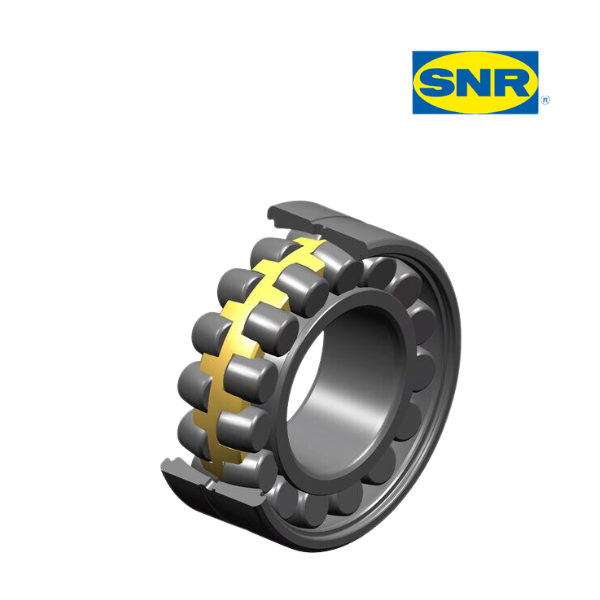

Item Number - 22330.E.F800 SNR
Also known as - 22330CCJA/W33VA405 22330-E1-XL-T41A
Category - Spherical Roller Bearing
Inner (d) MM - 150
Outer (D) MM - 320
Width (B) MM - 108
Inner (d) Inch - 5.9055
Outer (D) Inch - 12.5984
Width (B) Inch - 4.252
Weight (kg) - 39.5
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Vibrating Screen Execution
