Description

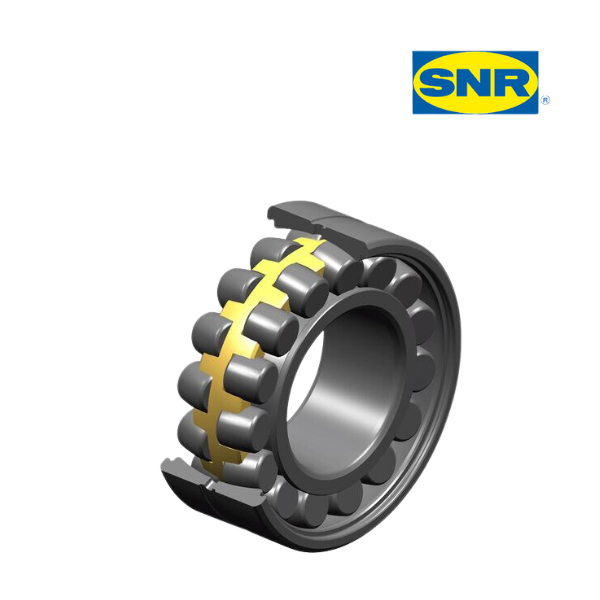

Brand - SNR
Item Number - 22326EK F800 SNR
Also known as - 22326CCKJA/W33VA405 22326-E1-K-T41A
Category - Spherical Roller Bearing
Inner (d) MM - 130
Outer (D) MM - 280
Width (B) MM - 93
Weight (kg) - 27.44
Bore - K - 1:12 Tapered Bore (Standard for Most Types)
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Vibrating Screen Execution
