Description
Brand - TIMKEN

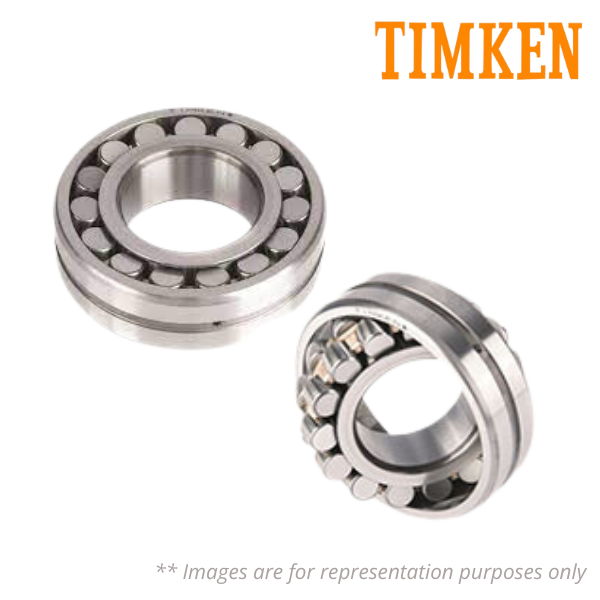

Item Number - 22317YM W800 C4 TIMKEN
Category - Spherical Roller Bearing
Inner (d) MM - 85
Outer (D) MM - 180
Width (B) MM - 60
Weight (kg) - 6.81
Bore - C - Cylindrical Bore
Lubrication Enhancement - W - No Lubrication Groove or Holes
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Vibrating Screen Execution
YM - One Piece Brass Cage - Finger Type
W800 - Shaker Screen Modification - Combines W22 (Outer Ring With Reduced Outside Diameter Tolerance), W88 (Inner Ring With Reduced Bore Diameter Tolerance) And Upper Two-Thirds Of Specified Radial Internal Clearance
