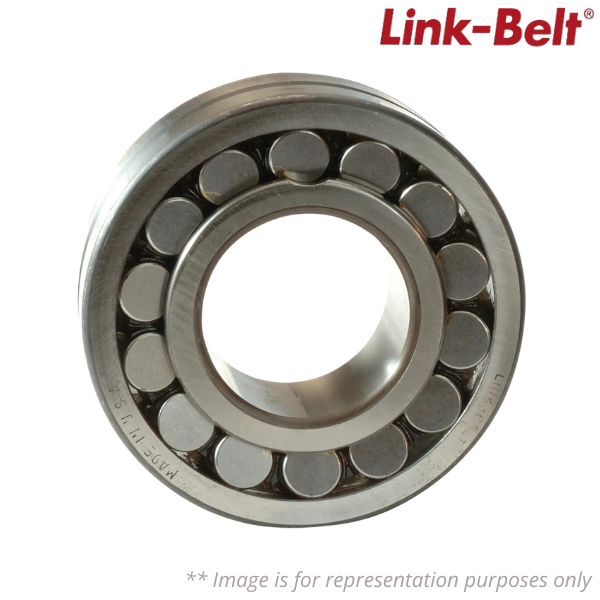

22311LBC3 Link-Belt

Brand - Link-Belt
Part Number - 22311LBC3 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 782935473509
Material - 10979838
Model - 22300LB
Bore Size (in) - 2.1654 in
Bore Size (mm) - 55 mm
Locking Type - Direct Shaft Mount
Bearing Brand - LINK-BELT SPHER SPLIT BLKS TU
Bearing Type - SPHERICAL ROLLER BRG
Bore Type - Straight
C Dynamic Load Rating - 50000 lb
Co Static Load Rating - 57000 lb
Height - 5.38
Housing Fillet Radius (in) - 0.08 in
Length - 10.88
Maximum Shoulder Diameter (in) - 4.30 in
Maximum Speed (RPM) - 3200 GREASE - 4000 OIL rpm
Maximum Speed Using Grease (RPM) - 3200 rpm
Maximum Speed Using Oil (RPM) - 4000 rpm
Minimum Shoulder Diameter (in) - 2.60 in
Mounted Clearance - C3 GREATER THAN C0 NORMAL
Weight (kg) - 4.89
Outside Diameter (in) - 4.7244 in
Retainer Type - STEEL
Sealed - None
Size Code - 22311
Unit of Dimension - IN
Vibration Frequency Fundamental Train - 0.0070 cps
Vibration Frequency Inner Ring Defect - 0.1310 cps
