Description
Brand - TIMKEN

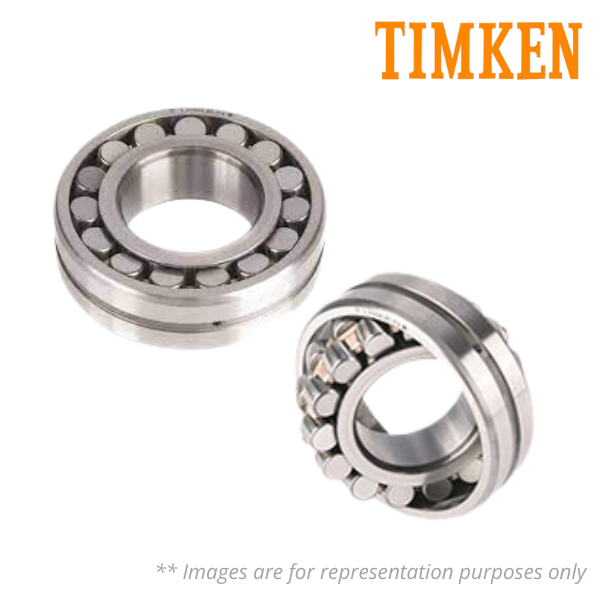

Item Number - 22309K YM W33 W800 C4 TIMKEN
Also known as - 22309EASK.MA.T41A 22309EK/VA405 22309KEMW33W800C4
Category - Spherical Roller Bearing
Inner (d) MM - 45
Outer (D) MM - 100
Width (B) MM - 36
Inner (d) Inch - 1.7717
Outer (D) Inch - 3.937
Width (B) Inch - 1.4173
Weight (kg) - 1.3
Bore - K - 1:12 Tapered Bore (Standard for Most Types)
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - C4 Internal Play (Higher than C3)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Vibrating Screen Execution
K - Tapered Bore, Taper 1:12
YM - One Piece Brass Cage - Finger Type
