Description
Brand - FAG
Item Number - 222SM340-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 267

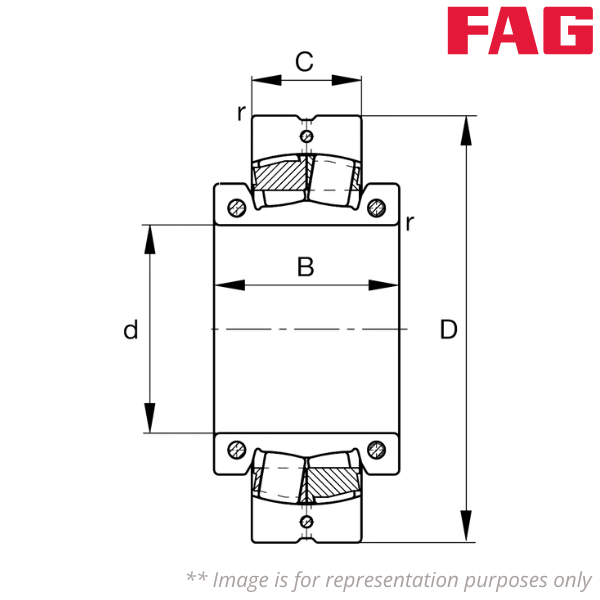

Inner Diameter (d) mm - 340
Outer Diameter (D) mm - 650
Outer Ring Width (C) mm - 170
Inner Ring Width (B) mm - 240
Minimum Chamfer Dimension (r) mm - 6
Basic Radial Dynamic Load Rating (Cr) kN - 3450
Basic Radial Static Load Rating (C0r) kN - 5100
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.25
Dynamic Axial Load Factor (Y1) - 2.69
Dynamic Axial Load Factor (Y2) - 4
Static Axial Load Factor (Y0) - 2.63
Fatigue Radial Load Limit (Cur) kN - 280
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 340
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 22272K
Adapter Sleeve - H3172HG
