Description
Brand - FAG
Item Number - 222SM300-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 214

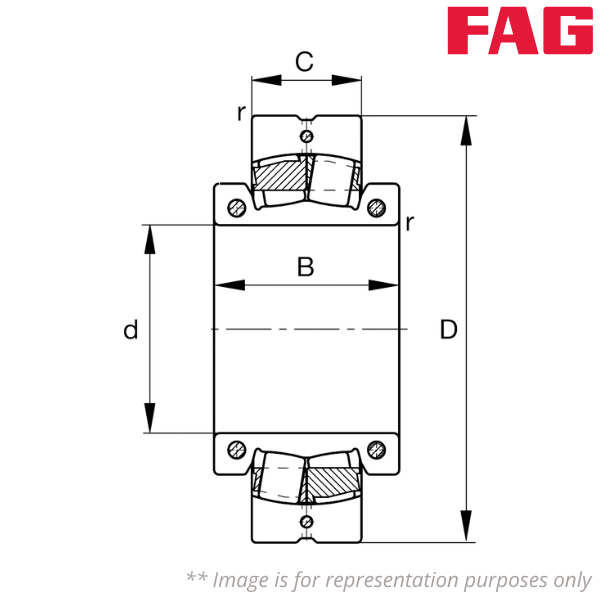

Inner Diameter (d) mm - 300
Outer Diameter (D) mm - 580
Outer Ring Width (C) mm - 150
Inner Ring Width (B) mm - 212
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 2650
Basic Radial Static Load Rating (C0r) kN - 4050
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.24
Dynamic Axial Load Factor (Y1) - 2.84
Dynamic Axial Load Factor (Y2) - 4.23
Static Axial Load Factor (Y0) - 2.78
Fatigue Radial Load Limit (Cur) kN - 228
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 380
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 22264K
Adapter Sleeve - H3164HG
Housing - SD564-N-FZ
