Description
Brand - FAG
Item Number - 222SM280-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 157

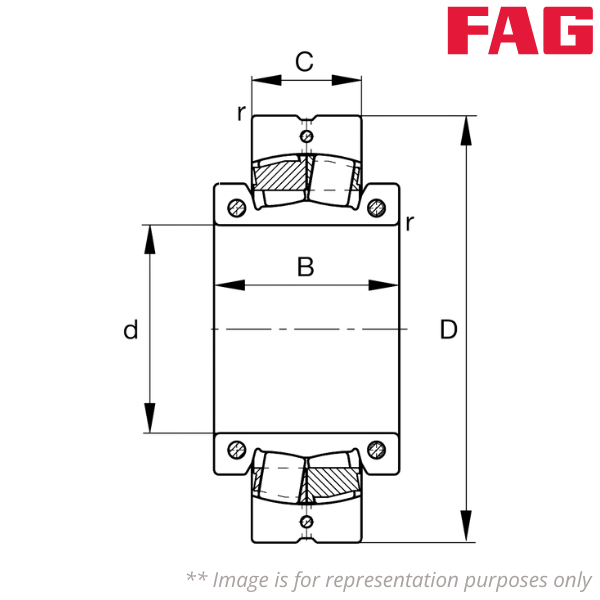

Inner Diameter (d) mm - 280
Outer Diameter (D) mm - 540
Outer Ring Width (C) mm - 140
Inner Ring Width (B) mm - 200
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 2400
Basic Radial Static Load Rating (C0r) kN - 3550
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.24
Dynamic Axial Load Factor (Y1) - 2.79
Dynamic Axial Load Factor (Y2) - 4.15
Static Axial Load Factor (Y0) - 2.73
Fatigue Radial Load Limit (Cur) kN - 212
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 430
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 22260K
Adapter Sleeve - H3160HG
Housing - SD560-N-FZ
