Description
Brand - FAG
Item Number - 222SM260-MA FAG
Category - Split Spherical Roller Bearing

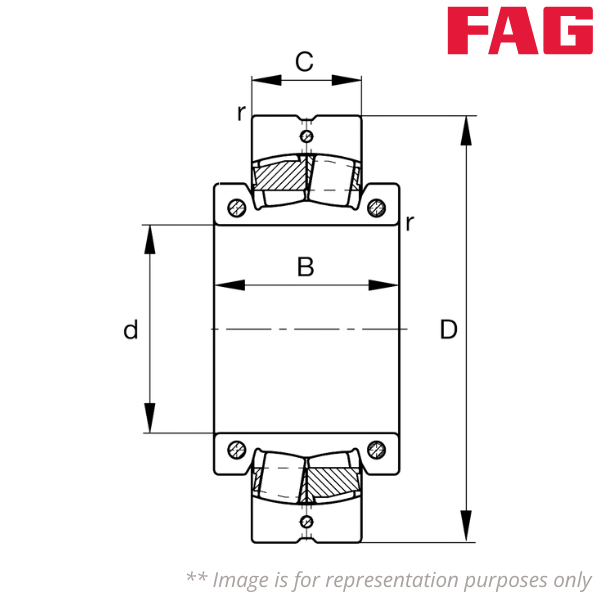

Weight (m) kg - 147
Inner Diameter (d) mm - 260
Outer Diameter (D) mm - 500
Outer Ring Width (C) mm - 130
Inner Ring Width (B) mm - 200
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 2200
Basic Radial Static Load Rating (C0r) kN - 3100
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.25
Dynamic Axial Load Factor (Y1) - 2.67
Dynamic Axial Load Factor (Y2) - 3.97
Static Axial Load Factor (Y0) - 2.61
Fatigue Radial Load Limit (Cur) kN - 182
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 430
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 69
Bearing Designation - 22256K
Adapter Sleeve - H3156X
Housing - SD556-N-FZ
