Description
Brand - FAG
Item Number - 222SM240-MA FAG
Category - Split Spherical Roller Bearing
Weight (m) kg - 136

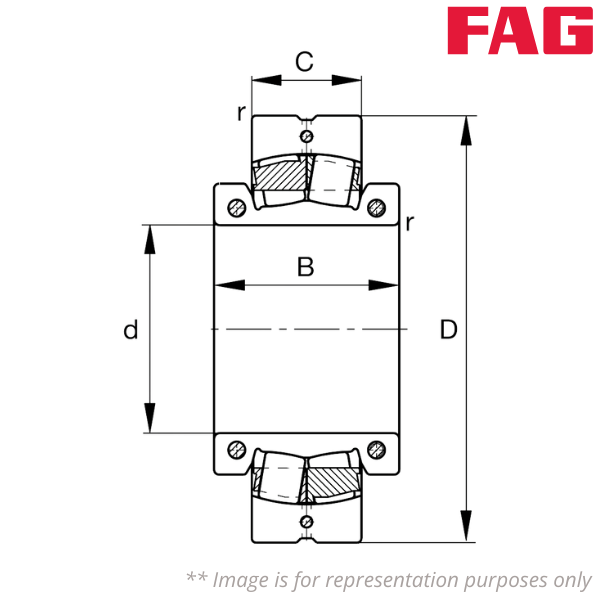

Inner Diameter (d) mm - 240
Outer Diameter (D) mm - 480
Outer Ring Width (C) mm - 130
Inner Ring Width (B) mm - 200
Minimum Chamfer Dimension (r) mm - 5
Basic Radial Dynamic Load Rating (Cr) kN - 1860
Basic Radial Static Load Rating (C0r) kN - 2600
Limiting Value of Fa/Fr for The Applicability of Diff. Values of Factors X and Y (e) - 0.26
Dynamic Axial Load Factor (Y1) - 2.64
Dynamic Axial Load Factor (Y2) - 3.93
Static Axial Load Factor (Y0) - 2.58
Fatigue Radial Load Limit (Cur) kN - 157
Maximum Axial Load (Fa) - 60
Limiting speed (nG) min–1 - 450
Tightening Torque Clamping Screw (Ni) Nm - 295
Tightening Torque Clamping Screw (Ma) Nm - 120
Bearing Designation - 22252K
Adapter Sleeve - H3152X
Housing - SD552-N-FZ
