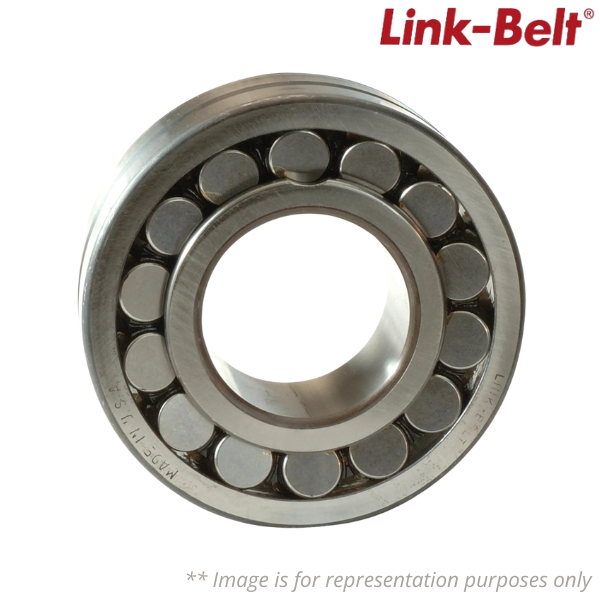

22244LCKC3 Link-Belt

Brand - Link-Belt
Part Number - 22244LCKC3 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 793699332087
Material - 10442154
Model - 22200LBK
Bore Size (in) - 8.6614 in
Bore Size (mm) - 220 mm
Locking Type - Tapered Bore
Bearing Brand - LINK-BELT SPHER SPLIT BLKS TU
Bearing Type - SPHERICAL ROLLER BRG
C Dynamic Load Rating - CALL ENG lb
Co Static Load Rating - CALL ENG lb
Housing Fillet Radius (in) - 0.12 in
Maximum Shoulder Diameter (in) - 15.10 in
Maximum Speed (RPM) - CALL ENG rpm
Maximum Speed Using Grease (RPM) - 1000 rpm
Maximum Speed Using Oil (RPM) - 1200 rpm
Minimum Shoulder Diameter (in) - 9.40 in
Mounted Clearance - C3 GREATER THAN C0 NORMAL
Weight (kg) - 68.945984
Outside Diameter (in) - 15.748 in
Retainer Type - UNKNOWN
Size Code - 22244
Vibration Frequency Fundamental Train - Available on Request
Vibration Frequency Inner Ring Defect - Available on Request
Vibration Frequency Outer Ring Defect - Available on Request
Vibration Frequency Roller Spin - Available on Request
