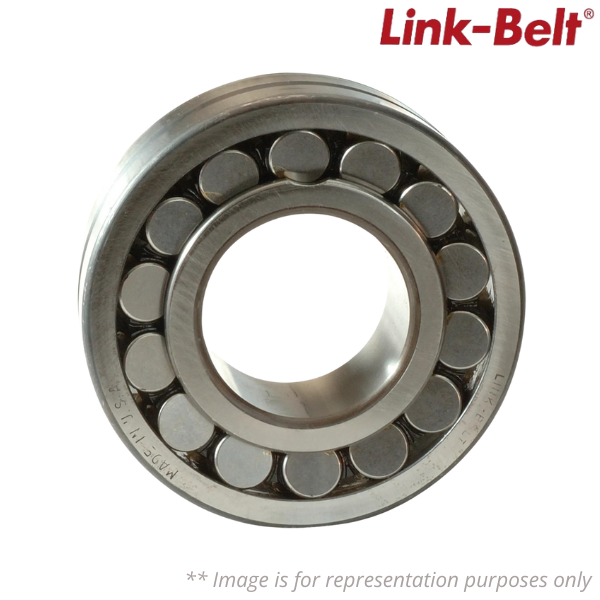

22240LBKC0 Link-Belt

Brand - Link-Belt
Part Number - 22240LBKC0 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 662327195076
Material - 10416155
Model - 22200LBK
Bore Size (in) - 7.4803 in
Locking Type - Tapered Bore
Bearing Brand - LINK-BELT SPHER SPLIT BLKS TU
Bearing Type - SPHERICAL ROLLER BRG
Bore Type - Tapered
C Dynamic Load Rating - 300000 lb
Co Static Load Rating - 450000 lb
Housing Fillet Radius (in) - 0.12 in
Maximum Shoulder Diameter (in) - 13 1/2 in
Maximum Speed (RPM) - 1100 GREASE - 1300 OIL rpm
Maximum Speed Using Grease (RPM) - 1100 rpm
Maximum Speed Using Oil (RPM) - 1300 rpm
Minimum Shoulder Diameter (in) - 8.60 in
Mounted Clearance - C0 NORMAL
Weight (kg) - 44.905608
Outside Diameter (in) - 14.1732 in
Retainer Type - BRASS
Sealed - None
Size Code - 22240
Vibration Frequency Fundamental Train - 0.0071 cps
Vibration Frequency Inner Ring Defect - 0.1811 cps
Vibration Frequency Outer Ring Defect - 0.1356 cps
