Description
Brand - FAG
Item Number - 22236-E1-XL-C3 FAG
Category - Spherical Roller Bearing
Also known as - 0190005700030 22236-E1-C3
EAN - 4026677833730
Inner (d) MM - 180
Outer (D) MM - 320
Width (B) MM - 86
Inner (d) Inch - 7.0866
Outer (D) Inch - 12.5984
Width (B) Inch - 3.3858
Weight (kg) - 29.2
Bore - C - Cylindrical Bore
Lubrication Enhancement - W33 - Lubrication Groove and 3 Holes
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
Vibrating Screen Execution - Non Vibrating Screen Execution
Radial Static Load Rating C0r (N) - 1680000
Radial Dynamic Load Rating Cr (N) - 1360000

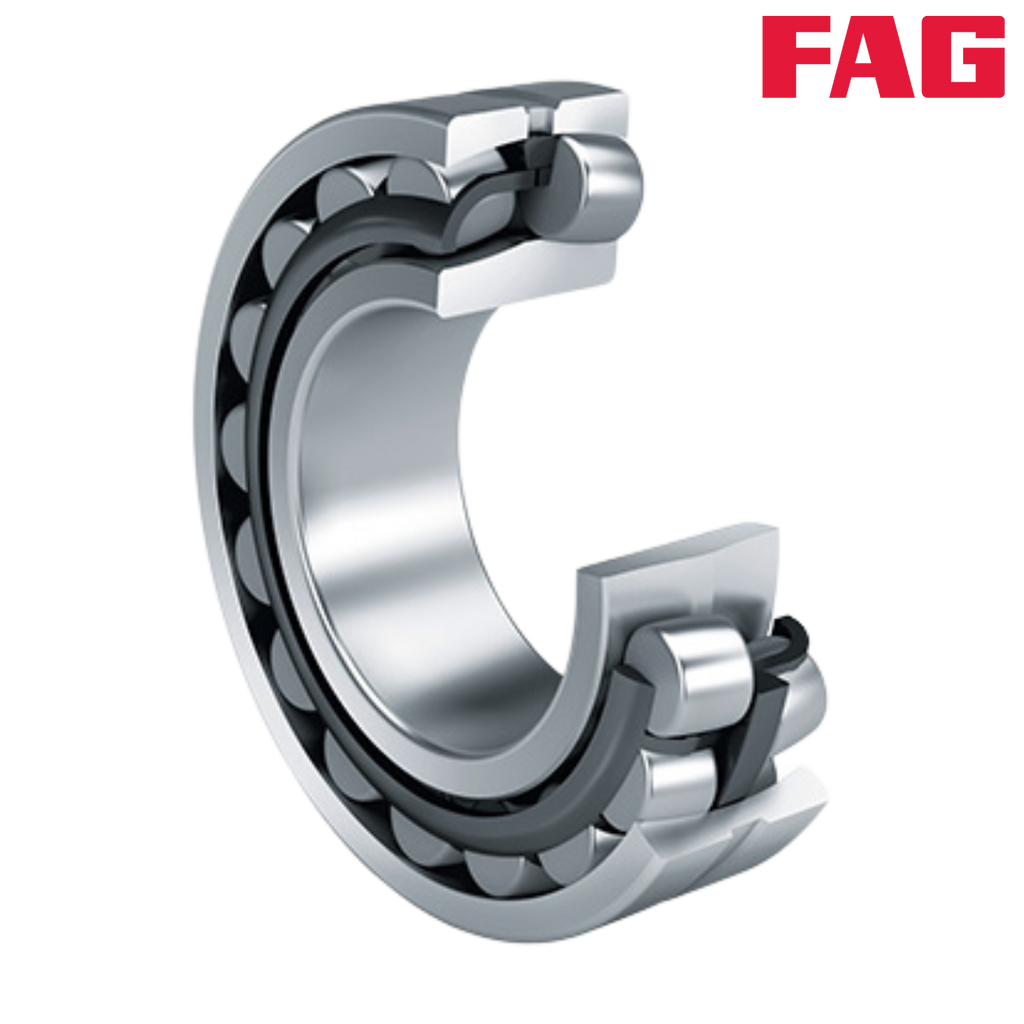

** Image is for representation purposes only
