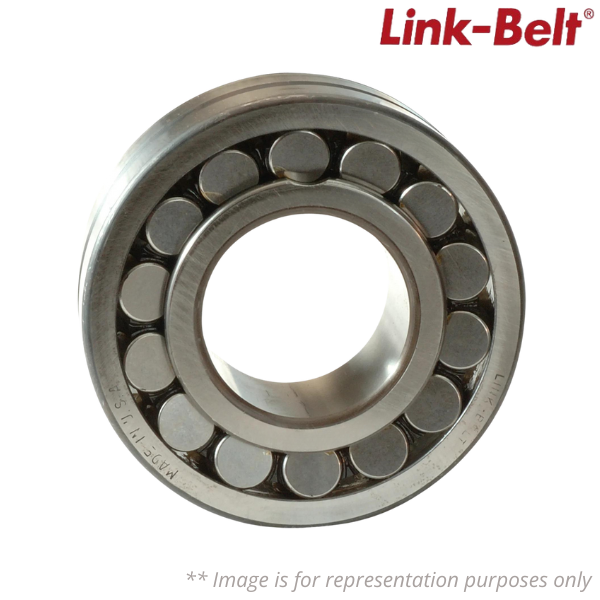

22222LCKC3 Link-Belt

Brand - Link-Belt
Part Number - 22222LCKC3 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 793699332018
Material - 10423697
Model - 22200LBK
Bore Size (in) - 4.3307 in
Bore Size (mm) - 110 mm
Locking Type - Tapered Bore
Bearing Brand - LINK-BELT SPHER SPLIT BLKS TU
Bearing Type - SPHERICAL ROLLER BRG
Bore Type - Tapered
C Dynamic Load Rating - CALL ENG lb
Co Static Load Rating - CALL ENG lb
Housing Fillet Radius (in) - 0.08 in
Maximum Shoulder Diameter (in) - 7.40 in
Maximum Speed (RPM) - CALL ENG rpm
Maximum Speed Using Grease (RPM) - 2000 rpm
Maximum Speed Using Oil (RPM) - 2500 rpm
Minimum Shoulder Diameter (in) - 4.80 in
Mounted Clearance - C3 GREATER THAN C0 NORMAL
Weight (kg) - 6.9399576
Outside Diameter (in) - 7.874 in
Retainer Type - UNKNOWN
Sealed - None
Size Code - 22222
Vibration Frequency Fundamental Train - Available on request
Vibration Frequency Inner Ring Defect - Available on request
Vibration Frequency Outer Ring Defect - Available on request
Vibration Frequency Roller Spin - Available on request
