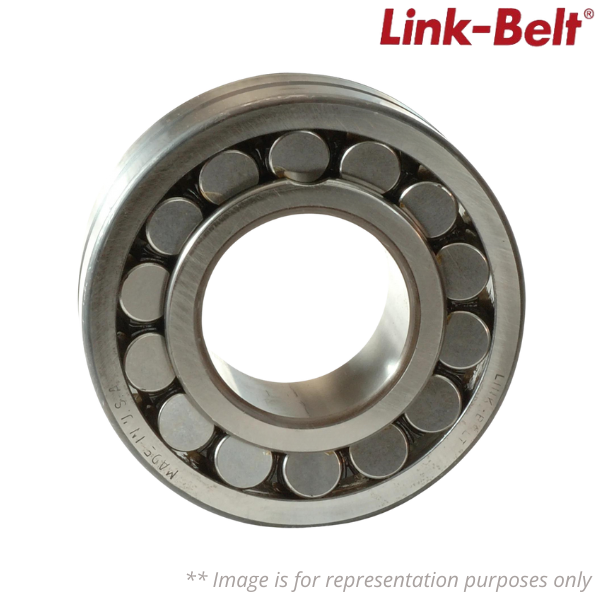

22222LBKC0 Link-Belt

Brand - Link-Belt
Part Number - 22222LBKC0 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 662327194727
Material - 10420596
Model - 22200LBK
Bore Size (in) - 4.3307 in
Locking Type - Tapered Bore
Bearing Brand - LINK-BELT SPHER SPLIT BLKS TU
Bearing Type - SPHERICAL ROLLER BRG
Bore Type - Tapered
C Dynamic Load Rating - 102000 lb
Co Static Load Rating - 132000 lb
Housing Fillet Radius (in) - 0.08 in
Maximum Shoulder Diameter (in) - 7.40 in
Maximum Speed (RPM) - 2000 GREASE - 2500 OIL rpm
Maximum Speed Using Grease (RPM) - 2000 rpm
Maximum Speed Using Oil (RPM) - 2500 rpm
Minimum Shoulder Diameter (in) - 4.80 in
Mounted Clearance - C0 NORMAL
Weight (kg) - 7.10778664
Outside Diameter (in) - 7.874 in
Retainer Type - STEEL
Sealed - None
Size Code - 22222
Vibration Frequency Fundamental Train - 0.0069 cps
Vibration Frequency Inner Ring Defect - 0.1650 cps
Vibration Frequency Outer Ring Defect - 0.1186 cps
Vibration Frequency Roller Spin - 0.0493 cps
