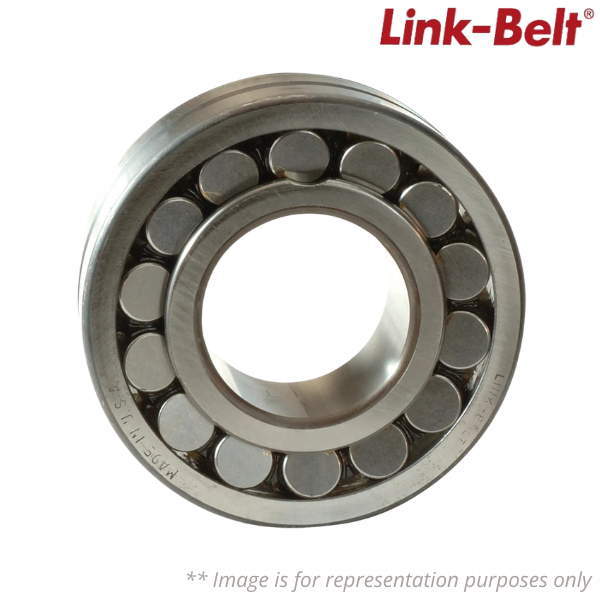

22218LBKC3 Link-Belt

Brand - Link-Belt
Part Number - 22218LBKC3 Link-Belt
Category - Bearing Inserts (Unmounted Replacements) Spherical Roller Bearings
UPC - 782935481313
Material - 10980079
Model - 22200LBK
Bore Size (in) - 3.5433 in
Bore Size (mm) - 90 mm
Locking Type - Tapered Bore
Bearing Brand - LINK-BELT SPHER SPLIT BLKS TU
Bearing Type - SPHERICAL ROLLER BRG
Bore Type - Tapered
C Dynamic Load Rating - 64000 lb
Co Static Load Rating - 81500 lb
Housing Fillet Radius (in) - 0.08 in
Maximum Shoulder Diameter (in) - 5.90 in
Maximum Speed (RPM) - 2600 GREASE - 3000 OIL rpm
Maximum Speed Using Grease (RPM) - 2600 rpm
Maximum Speed Using Oil (RPM) - 3000 rpm
Minimum Shoulder Diameter (in) - 3.90 in
Mounted Clearance - C3 GREATER THAN C0 NORMAL
Weight (kg) - 3.28400608
Outside Diameter (in) - 6.2992 in
Retainer Type - STEEL
Sealed - None
Size Code - 22218
Vibration Frequency Fundamental Train - 0.0070 cps
Vibration Frequency Inner Ring Defect - 0.1730 cps
Vibration Frequency Outer Ring Defect - 0.1270 cps
