Description
Brand - NILOS
Item Number - 22210 JV NILOS
Category - NILOS-RING for Double Row Spherical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 57.5 mm
Dimension (c) - 73 mm
Outer Diamter (D) - 90 mm
Width (h) - 3 mm
Material Thickness (s) - 0.3 mm

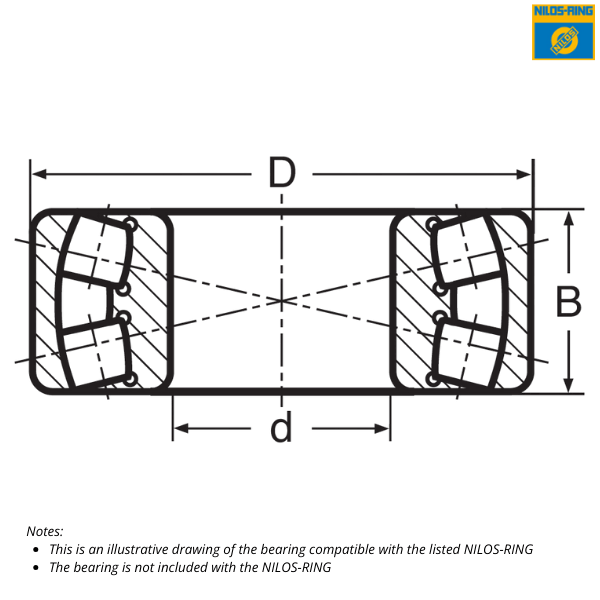

Description of Compatible Bearing (222 Series) :
Bearing Part Number - 22210
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 50 mm
Outer Diameter (D) - 90 mm
Width (B) - 23 mm
♦ ♦ Images are for representation purposes only
Item Number - 22210 JV NILOS
Category - NILOS-RING for Double Row Spherical Roller Bearing
Principal Dimensions & Load Ratings (Metric) :
Inner Diameter (i) - 57.5 mm
Dimension (c) - 73 mm
Outer Diamter (D) - 90 mm
Width (h) - 3 mm
Material Thickness (s) - 0.3 mm
Description of Compatible Bearing (222 Series) :
Bearing Part Number - 22210
Bearing Type - Double Row Self-Aligning Ball Bearing
Inner Diameter (d) - 50 mm
Outer Diameter (D) - 90 mm
Width (B) - 23 mm
♦ ♦ Images are for representation purposes only
