Description
Brand - FAG
Item Number - 2209-K-2RS-TVH-C3>J FAG

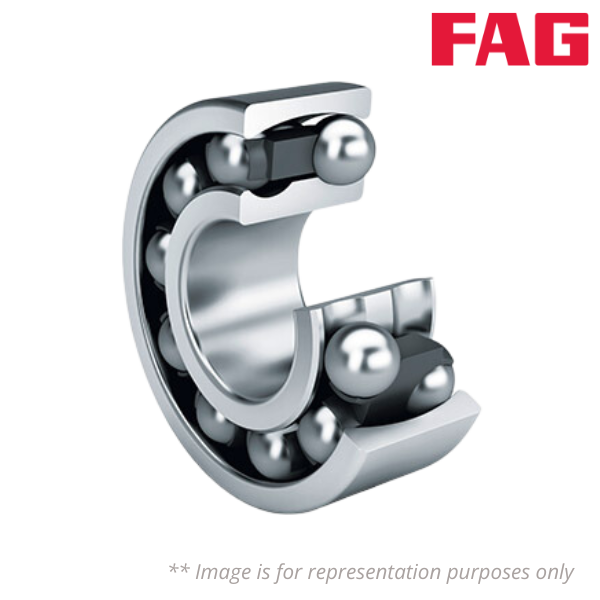

Category - Self Aligning Ball Bearing Double Row
Also known as - 2209E-2RS1KTN9/C3 2209K-2RSTNGC3 2209-K-2RS-TVH-C3 3002420340030
Inner (d) MM - 45
Outer (D) MM - 85
Width (B) MM - 23
Inner (d) Inch - 1.7717
Outer (D) Inch - 3.3465
Width (B) Inch - 0.9055
Weight (kg) - 0.533
Bore - K - 1:12 Tapered Bore (Standard for Most Types)
Seal - 2RS - Rubber Seal on Two Sides
Cage Type - P - Plastic Molded Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Lubrication - Standard Lubrication
Heat Stabilization - No Heat Stabilization - Temperatures up to 120 °C
