Description

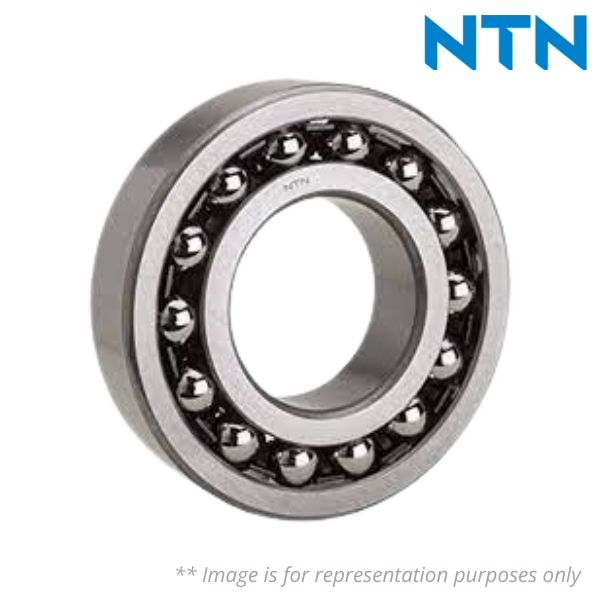

Brand - NTN
Item Number - 2208L1 NTN
Category - Self Aligning Ball Bearing Double Row
Also known as - 2208M
Inner (d) MM - 40
Outer (D) MM - 80
Width (B) MM - 23
Inner (d) Inch - 1.5748
Outer (D) Inch - 3.1496
Width (B) Inch - 0.9055
Weight (kg) - 0.505
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - M - Brass Cage
Radial Internal Play - Cn Normal Internal Play
Precision - Standard Precision
Lubrication - Standard Lubrication
