Description
Brand - ZEN
Item Number - 2204-2RS ZEN
Category - Double Row Self Aligning Ball Bearing

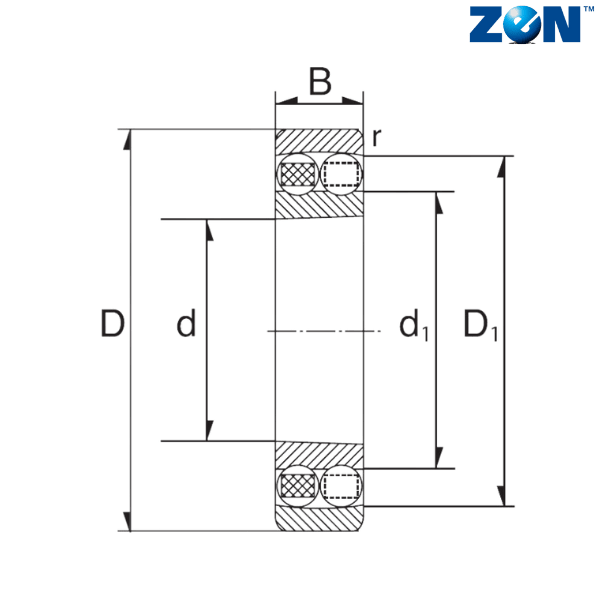

Inner Ring Dimension (d) mm - 20
Outer Ring Dimension (D) mm - 47
Width (B) mm - 18
Dynamic Load Rating (N) - 9800
Static Load Rating (N) - 3950
Limiting Speed (Grease) - 13
Limiting Speed (Oil) - 16
Weight (kg) - 0.14
Radial Play - 0.005-0.02
Outer Ring Material - AISI52100
Inner Ring Material - AISI52100
Ball Material - AISI52100
Notes :
2RS - Rubber Seals
S - Stainless Steel
** Images are for representation purposes only
