Description
Brand - NTN
Item Number - 2201C3 NTN

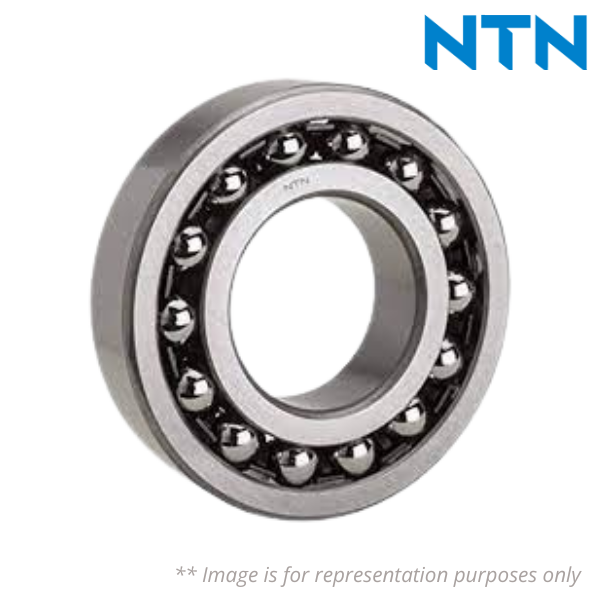

Category - Self Aligning Ball Bearing Double Row
Inner (d) MM - 12
Outer (D) MM - 32
Width (B) MM - 14
Inner (d) Inch - 0.4724
Outer (D) Inch - 1.2598
Width (B) Inch - 0.5512
Weight (kg) - 0.053
Bore - C - Cylindrical Bore
Seal - No Seal
Cage Type - S - Steel or Standard Cage
Radial Internal Play - C3 Internal Play (Higher than Cn)
Precision - Standard Precision
Lubrication - Standard Lubrication
