Description
Brand - CPM

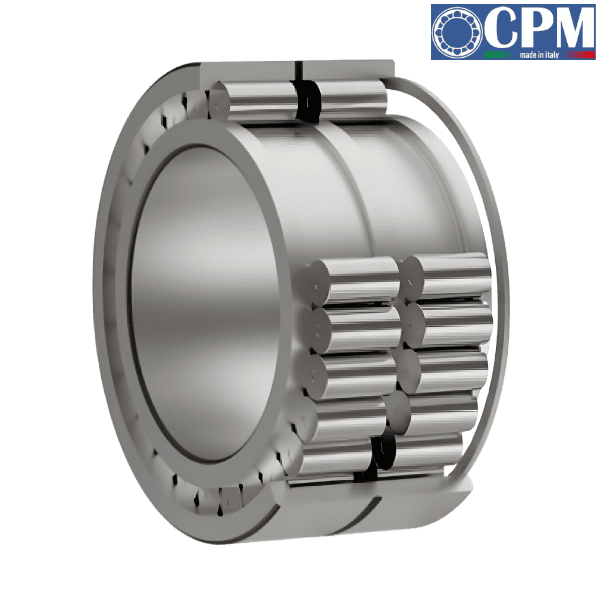

Part Number - 2199 CPM
Category - Double Row Full Complement Cylindrical Roller Bearing

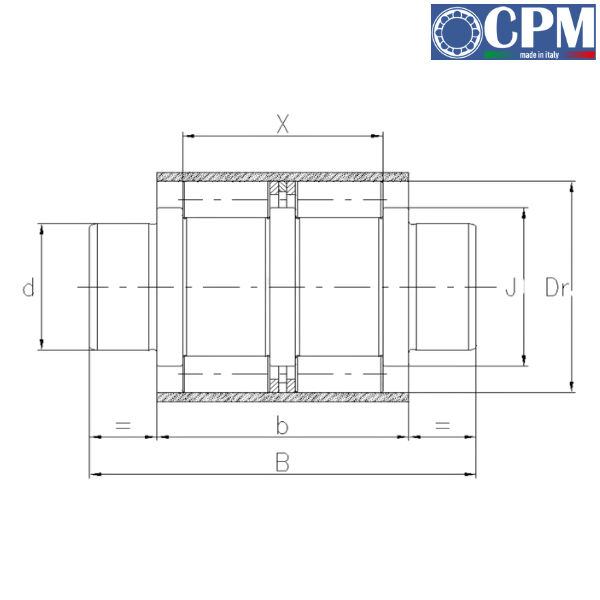

Principal Dimensions and Load Ratings (Metric):
Inner Diameter (d) - 50 mm
Outer Diameter (Dr) - 82.8 mm
Width (B) - 114.5 mm
Dimension (b) - 70 mm
Dimension (J) - 58.5 mm
Dimension (X) - 55.5 mm
Basic Dynamic Radial Load Rating (Cr) - 229.3 kN
Basic Static Radial Load Rating (Cor) - 317 kN
Other salient points to be noted:
• Configurations: Available as single-row or multi-row designs, and in both full complement (full-fill) and caged versions
• Space Optimization: Full-fill cylindrical bearings are made with one or more crowns to maximize roller density and space use
• Performance: The caged variant is engineered for superior performance, withstanding very high loads and operating at high speeds
• Coatings: Coatings like chrome, phosphating, galvanizing, or black oxide can be applied as needed for specific technical requirements.
• Materials: In most cases bearings are made of typical chromium bearing steel, either full hardening or case hardening.
• Dimension: Minimum inner diameter 10 mm to maximum outer diameter 800 mm
• Main Appliccation: Planetary gearboxes, textile machines
♦♦ Images are for representation purposes only
