Description
Brand - CPM
Part Number - 2190 - 2465 CPM
Category - Double Row Full Complement Cylindrical Roller Bearing

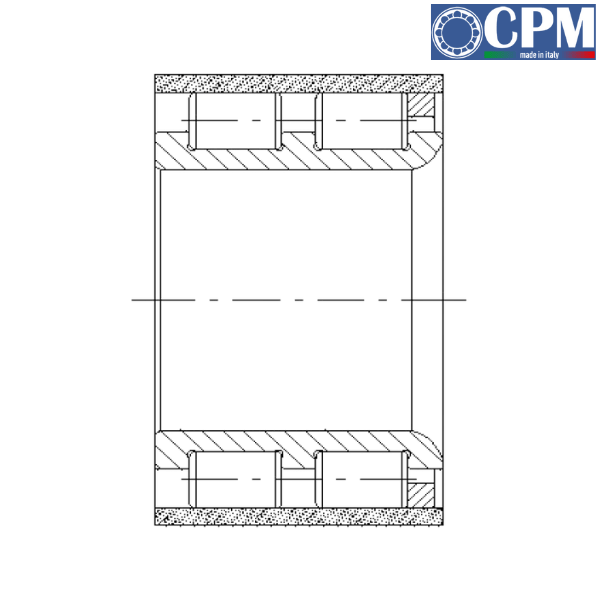

Type - C
Type C - 1 Side Ring
Principal Dimensions and Load Ratings (Metric):
Inner Diameter (d) - 50 mm
Outer Diameter (Dr) - 72.33 mm
Width (B) - 40 mm
Dimension (J) - 59 mm
Dimension (X) - 33.1 mm
Chamfer Dimension (R min) - 1.1 mm
Minimum Chamfer Dimension (r min) - 1.1 mm
Basic Dynamic Radial Load Rating (Cr) - 130.9 kN
Basic Static Radial Load Rating (Cor) - 194.3 kN
Other salient points to be noted:
• Configurations: Available as single-row or multi-row designs, and in both full complement (full-fill) and caged versions
• Space Optimization: Full-fill cylindrical bearings are made with one or more crowns to maximize roller density and space use
• Performance: The caged variant is engineered for superior performance, withstanding very high loads and operating at high speeds
• Coatings: Coatings like chrome, phosphating, galvanizing, or black oxide can be applied as needed for specific technical requirements
• Materials: In most cases bearings are made of typical chromium bearing steel, either full hardening or case hardening
• Dimension: Minimum inner diameter 10 mm to maximum outer diameter 800 mm
• Main Appliccation: Planetary gearboxes, textile machines

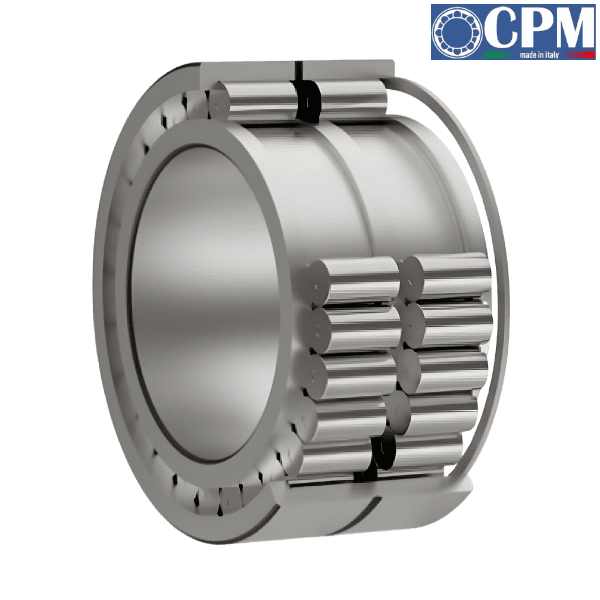

♦♦ Images are for representation purposes only
